QS205 1000W Single Shaft Electric Car Hub Motor V1 Type

Category: .



205 Single Shaft Car Hub Motor(40H) 1000W V2 Type



205 Single Shaft Car Hub Motor specially designed for Electric tricycle or 4-wheel electric vehicles, the rated power can be made 1500W,2000W OR 3000W for options.



Motor Specification:



  1. Motor Type: BLDC Hub Motor with Permanent Magnet
  2. Motor design: Single axle out without rim
  3. PCD for rim installation: 4 x100mm
  4. CB:60MM
  5. Magnet Height: 40MM
  6. of Pole Pairs: 23 pairs
  7. Rated Power: 1000W
  8. Max Power: 1800W
  9. Rated Voltage: 48V
  10. Max No-load RPM: 650RPM
  11. Max Torque: 100N.M
  12. Max Efficiency: 88%
  13. Continious current:23A
  14. Max current:45A
  15. Brake type: Disc brake
  16. Winding Core material: Aluminium
  17. Cross Section of Phase wire: 6 mm2
  18. Hall sensor phasing angle: 120 degree
  19. Temperature Sensor: Optional
  20. Working Temperature: 70 degree, Peak 120 degree
  21. Waterproof Grade: IP54
  22. Color: Black
  23. W./ G..W. : 15kgs / 16kgs
  24. Package Size: 34*34*33CM

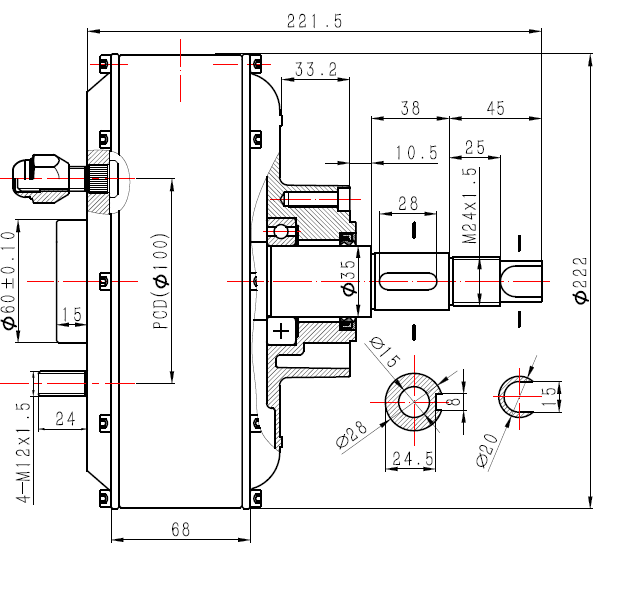

The Motor drawing as follows,

QQ截图20150906203207
