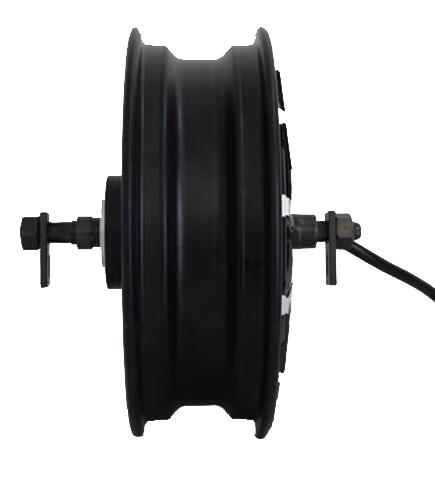

12inch 1500W E-Scooter Hub Motor 260Model



12inch 260 E-Scooter Hub Motor(30H) 1500W V1 Type



12inch 260 Hub Motor specially designed for electric motorcycle or electric scooters, the rated power can be made at 1500W,2000W,3000W or 5000W. Max speed can be customs at 35-100km/h.



Motor Specification:



  1. Motor Type: BLDC Hub Motor with Permanent Manget
  2. Motor design: Double axle out with 10inch rim
  3. Rim size:3.5×12
  4. Matached Tire: 120/70-12
  5. Magnet Height: 30MM
  6. of Pole Pairs: 23 paris
  7. Rated Power: 1500W
  8. Max Power: 2500W
  9. Rated Voltage: 48V( 60V/72V Can be optional)
  10. Speed: 45km/h (30-55km/h can be customized)
  11. Max No-load RPM: 650RPM
  12. Max Torque: 140N.M
  13. Max Efficiency: 86%
  14. Continious current:36A
  15. Max current:50A
  16. Brake type: Disc brake
  17. Rear Fock width for installation: 200mm
  18. Winding Core material: Iron
  19. Cross Section of Phase wire: 6 mm2
  20. Hall sensor phasing angle: 120 degree
  21. Temperature Sensor: Optional
  22. Working Temperature: 70 degree, Peak 120 degree
  23. Waterproof Grade: IP54
  24. Color: Black or Silver
  25. W./ G..W. : 15kgs / 16kgs
  26. Package Size: 44*43*34CM
