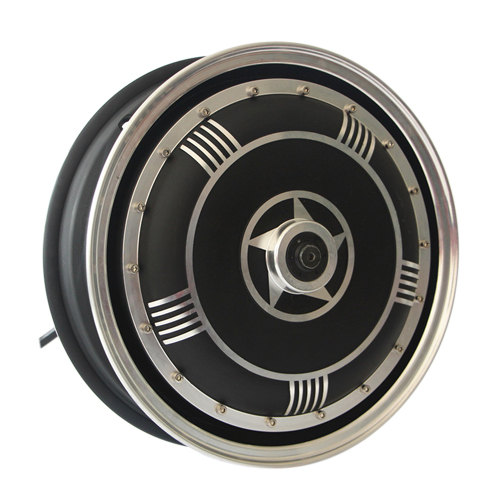

QS273 13inch 3000W V2 Single Shaft Hub Motor

13inch Single shaft In-Wheel Hub Motor(40H) 3000W V2 Type



13inch Single Shaft Hub Motor specially designed for electric scooters and small Electric vehicles with single swing arm installation, the rated power can be made 3kw,4kw,5kw,6kw,7kw or 8kw. Max speed can be customized from 30-100KMPH.



Motor Specification:



  1. Motor Type: BLDC Hub Motor with Permanent Magnets
  2. Motor design: Single axle out with 13inch Aluminium rim
  3. Rim size:3.5×13
  4. Matching Tire: 130/60-13
  5. Magnet Height: 40MM
  6. of Pole Pairs: 28 pairs
  7. Rated Power: 3000W
  8. Peak Power:5200W
  9. Rated Voltage: 72V( 48-96V Can be optional)
  10. Speed: 65km/h (30-65km/h can be customized)
  11. Max No-load RPM:900RPM
  12. Max Torque: 185N.M
  13. Max Efficiency: 88%
  14. Continious current:50A
  15. Max current:100A
  16. Brake type: Disc brake
  17. Winding Core material: Aluminium
  18. Cross Section of Phase wire: 10 mm2
  19. Hall sensor phasing angle: 120 degree
  20. Temperature Sensor: Optional
  21. Working Temperature: 70 degree, Peak 120 degree
  22. Waterproof Grade: IP54
  23. W./ G..W. : 21kgs / 22kgs
  24. Package Size: 44*43*34CM

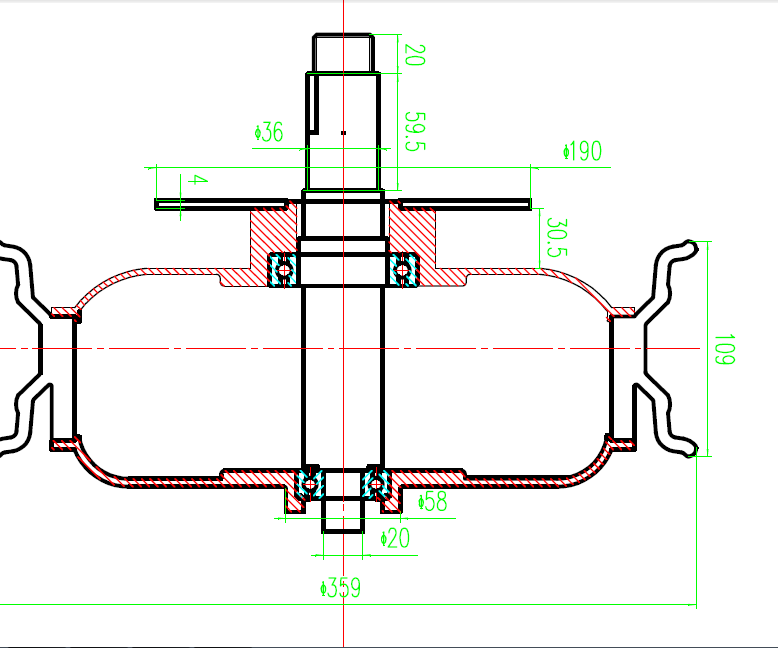

Motor Drawing as follows,



aQQ截图20150906212159

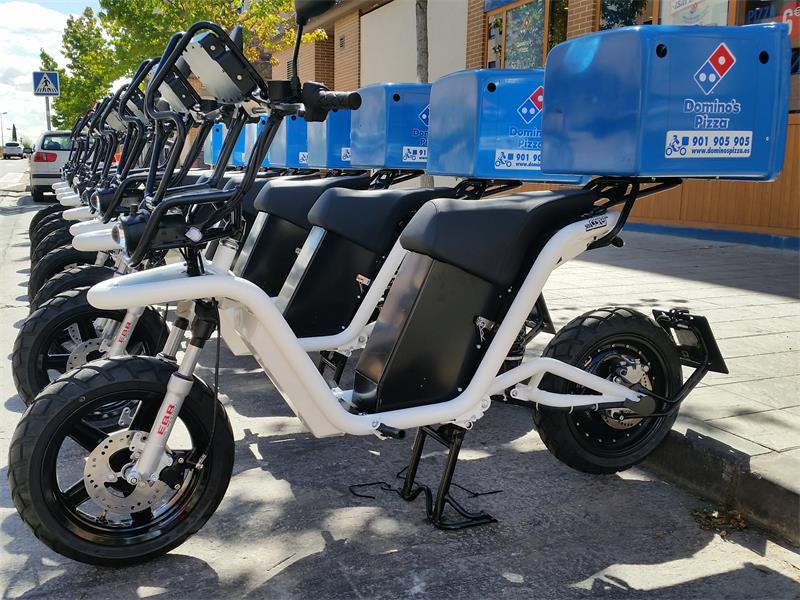

Application Scooter
