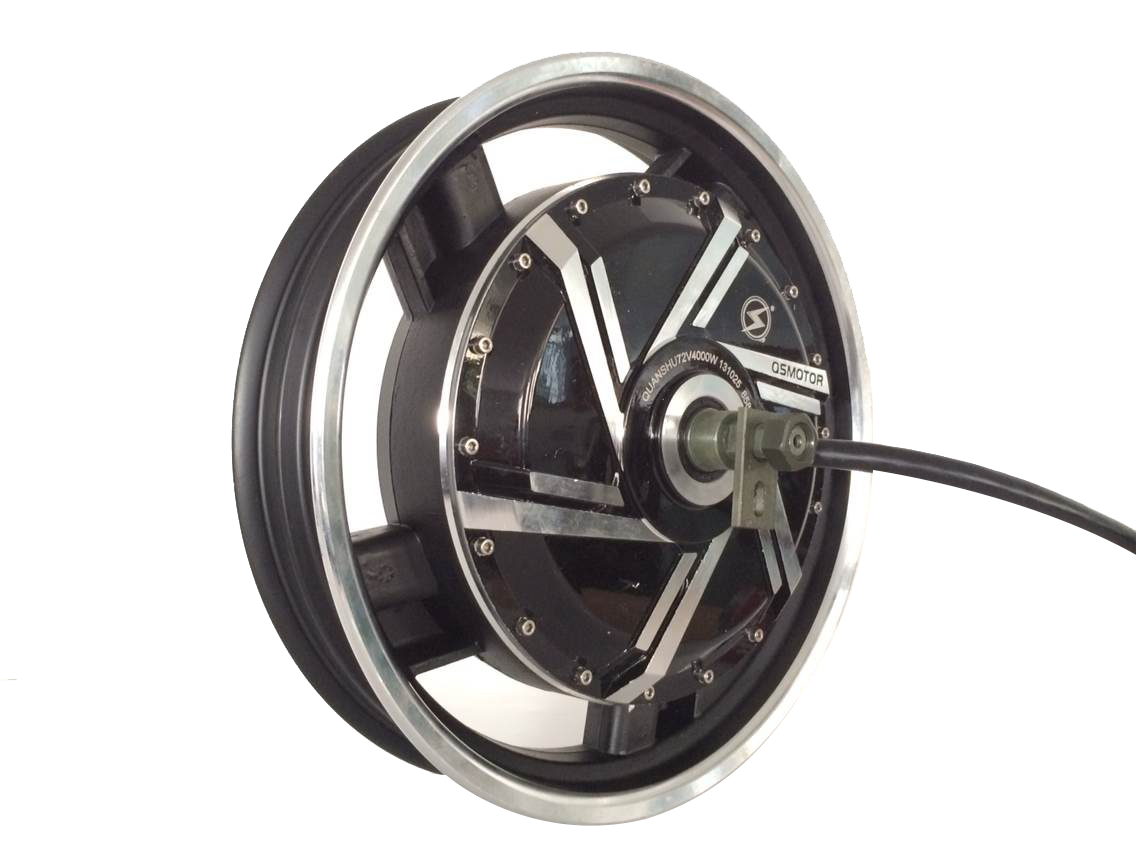

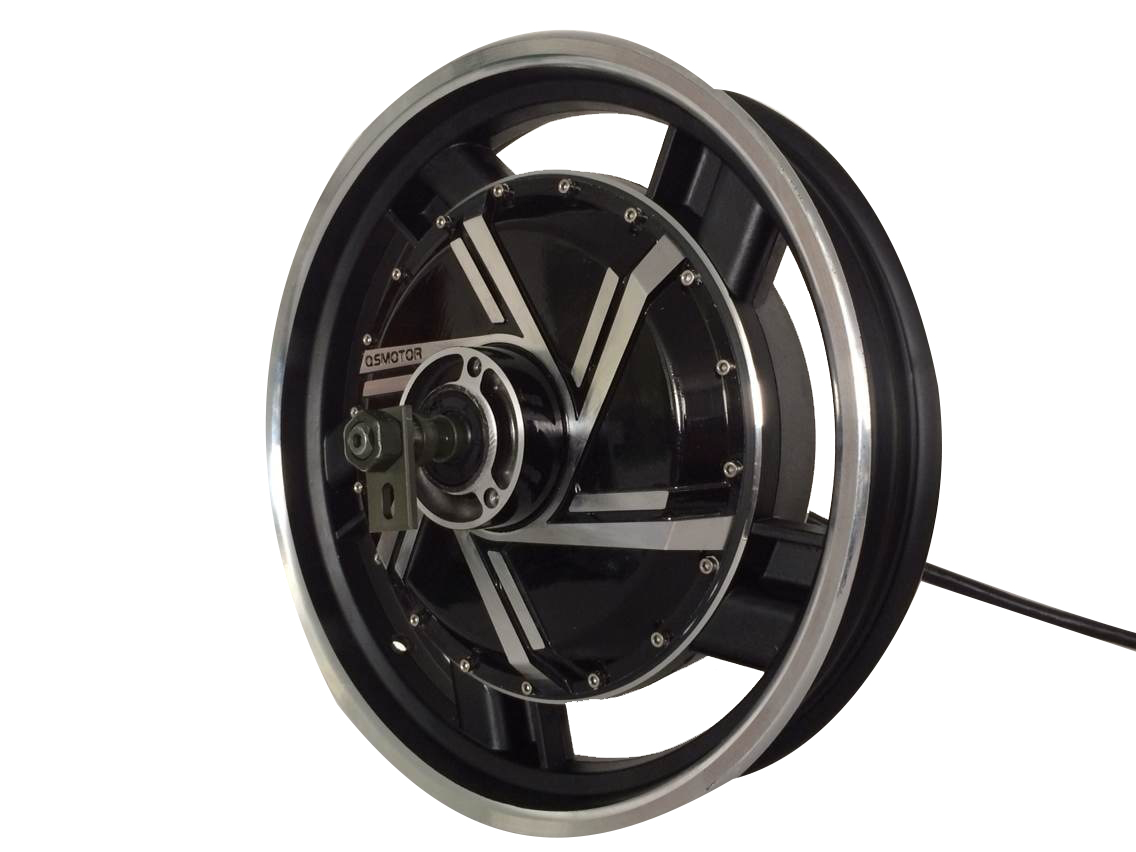

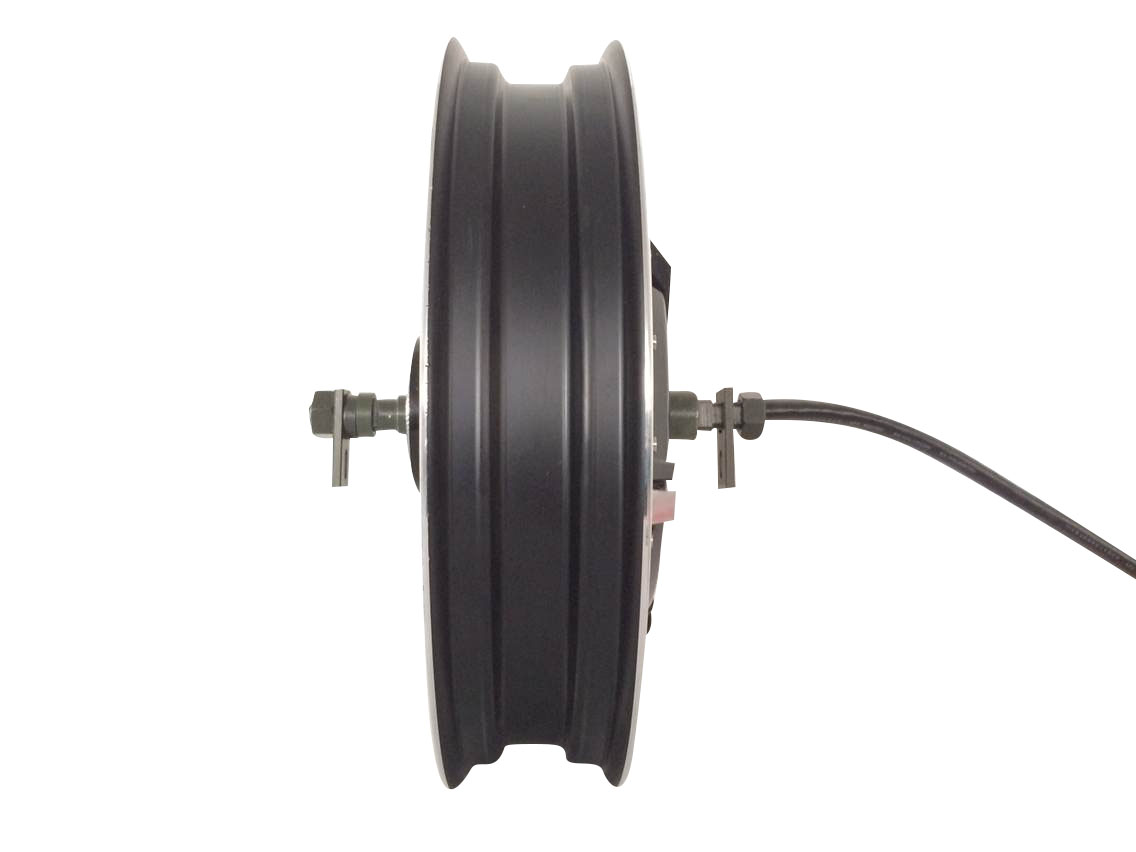

16inch 2000W In-Wheel Hub Motor(28H) V3 Type for Electric Motorcycle

16inch 273 E-Scooter In-Wheel Hub Motor(28H) 2000W V3 Type



16inch Hub Motor specially designed for electric motorcycle, the rated power can be made 2kw,3kw,4kw,5kw,6kw,7kw or 8kw. Max speed can be customized from 30-120KMPH.



Motor Specification:



  1. Motor Type: BLDC Hub Motor with Permanent Magnets
  2. Motor design: Double axle out with 16inch Aluminium rim
  3. Rim size:3.0×16
  4. Matching Tire: 110/80-16
  5. Magnet Height: 28MM
  6. of Pole Pairs: 16 pairs
  7. Rated Power: 2000W
  8. Max Power:2600W Peak 4000W
  9. Rated Voltage: 48V( 48-96V Can be optional)
  10. Speed: 65km/h (30-70km/h can be customized)
  11. Max No-load RPM: 700RPM
  12. Max Torque: 120N.M
  13. Max Efficiency: 90%
  14. Continious current:48A
  15. Max current:65A
  16. Brake type: Disc brake
  17. Rear Fork width for installation: 200mm
  18. Winding Core material: Aluminium
  19. Cross Section of Phase wire: 10 mm2
  20. Hall sensor phasing angle: 120 degree
  21. Temperature Sensor: Optional
  22. Working Temperature: 70 degree, Peak 120 degree
  23. Waterproof Grade: IP54
  24. W./ G..W. : 23kgs / 24kgs
  25. Package Size: 58*58*40CM



Motor Drawing as follows,

16inch 3.0x16
