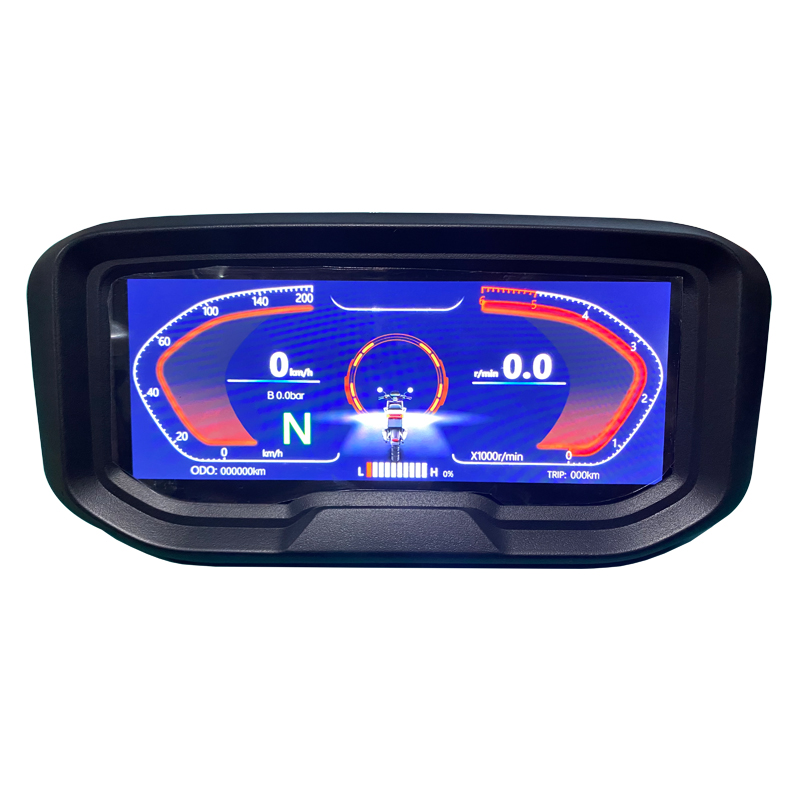

6.8inch Electric Motorcycle TFT Display 48V-120V

Category: .

6.8inch Electric Scooter Motorcycle TFT Display With ONE-LIN and CAN-BUS

Specification
item
6.8INCH TFT Adjustable Speedometer
Application
For electric scooter Motorcycle
Communication
One-LIN , CAN
Volts range
48V-108V

Functions:

1.Mobile phone Bluetooth connection meter projection function without IOS phone and Android phone install APP. Bluetooth name: METER-CJ**** 4 digits randomly change behind;

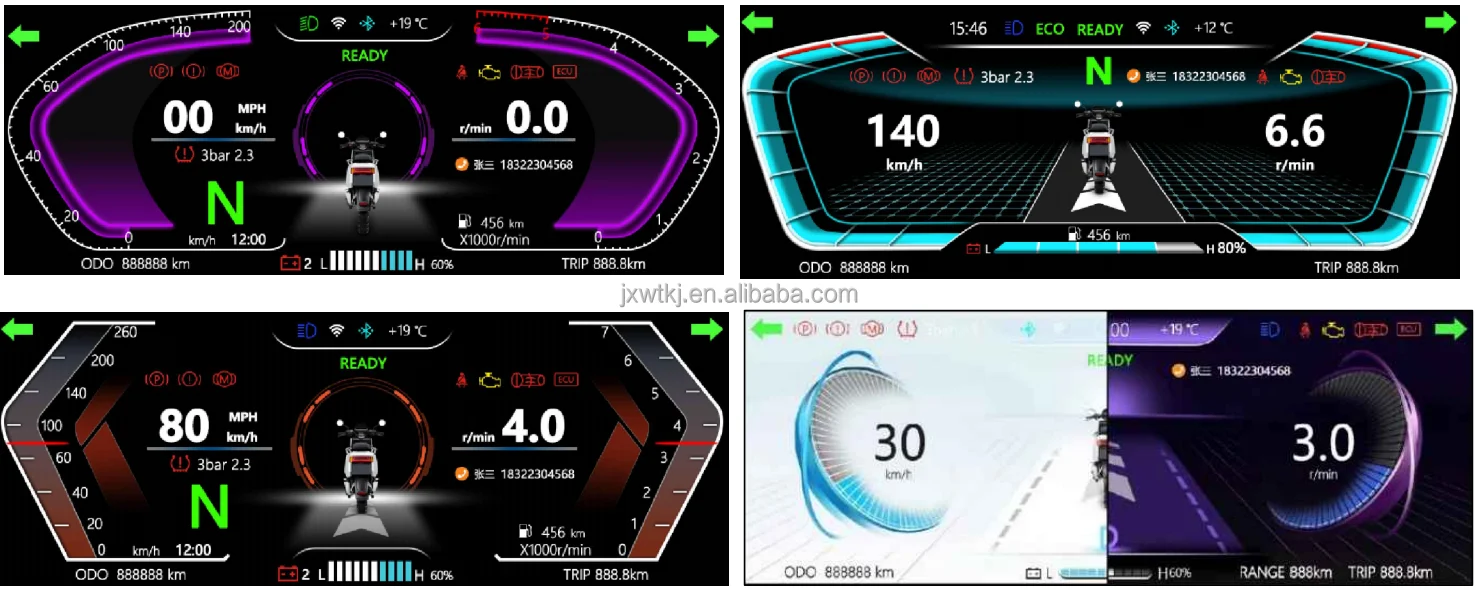

2.  Four main interface free switching; key + TP full touch function, a key lock screen function
3. Multimedia function: FM radio playback; 4. Instrument working voltage width: DC12-150V
5.; Amplifier output 8W/4 ohm * 2-way, USB software upgrade function;
6. Meter lithium and lead-acid power display universal;
7. Pixel: 480 * 1280, protection grade: IP65, use range: -20 ° – + 70 °
8. Background can be set: power, voltage, speed adjustable, Chinese and English can be switched, public English mileage switching, power and speed display switching, remaining mileage optional, view software version number etc.
