T13inch single shaft with removable rim

13inch 4000W Single Shaft E-Max Hub Motor

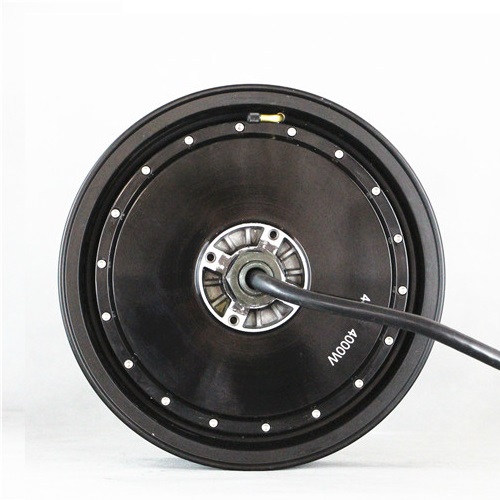

13inch Single shaft Hub Motor(40H) With Removable Rim 4000W V2 Type

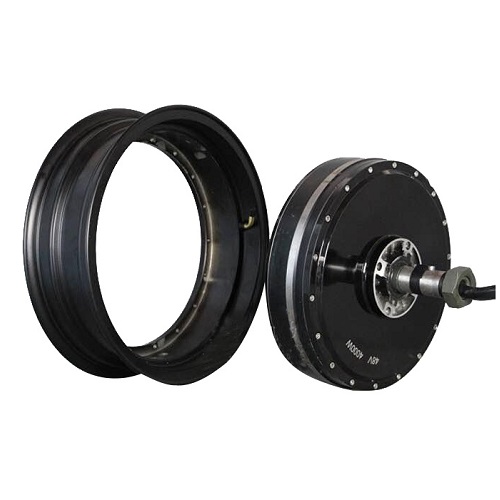

13inch Single Shaft Hub Motor with Removable rim is new designed for electric scooters and small Electric vehicles. The rim can be easily removable, so it will be very easy to replace and repair the tires.



Motor Specification:

  1. Motor Type: BLDC Hub Motor with Permanent Magnets
  2. Motor design: Double axle out with 13inch Removable rim
  3. Rim size:3.5×13
  4. Matching Tire: 130/60-13
  5. Magnet Height: 40MM
  6. of Pole Pairs: 28 pairs
  7. Lamination thickness:0.35mm
  8. Rated Power: 4000W
  9. Max Power:4950W(Peak 8000W)
  10. Rated Voltage: 72V( 48-96V Can be optional)
  11. Speed: 80km/h (30-80km/h can be customized)
  12. Max No-load RPM:1000RPM
  13. Max Torque: 185N.M
  14. Max Efficiency: 88%
  15. Continious current:67A
  16. Max current:80A Peak 140A
  17. Brake type: Disc brake
  18. Rear Fock width for installation: 200mm
  19. Winding Core material: Aluminium
  20. Cross Section of Phase wire: 10 mm2
  21. Hall sensor phasing angle: 120 degree
  22. Temperature Sensor: Optional
  23. Working Temperature: 70 degree, Peak 120 degree
  24. Waterproof Grade: IP54
  25. W./ G..W. : 21kgs / 22kgs
  26. Package Size: 44*43*34CM

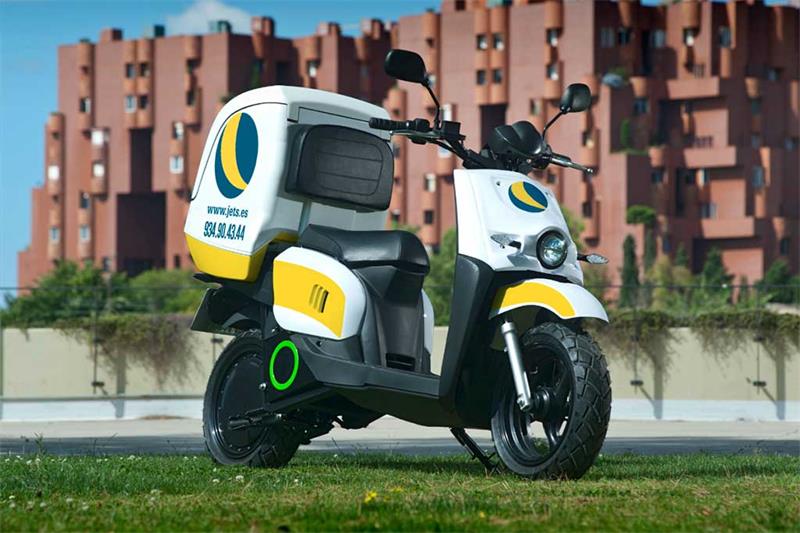

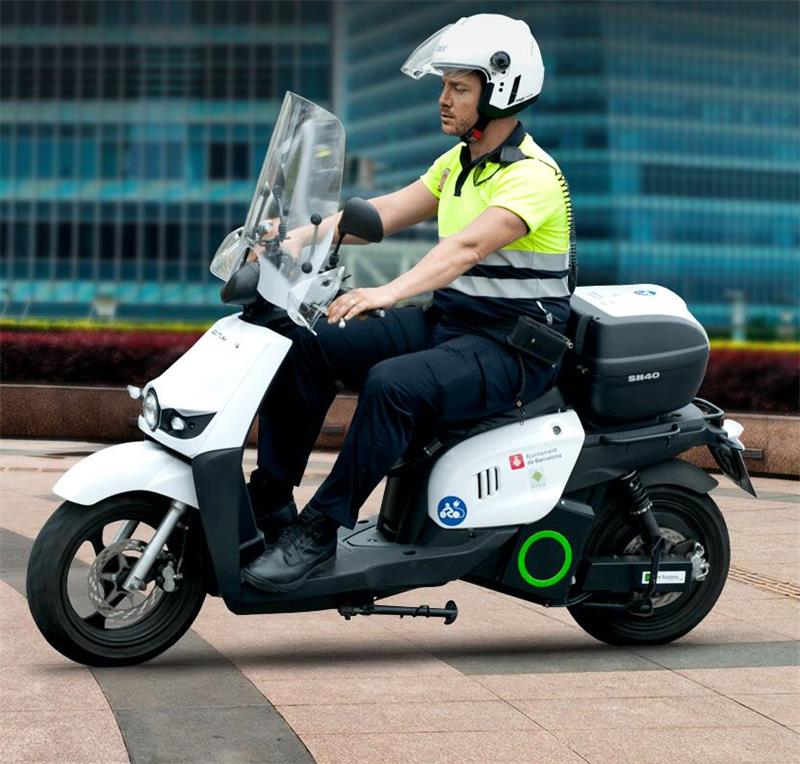

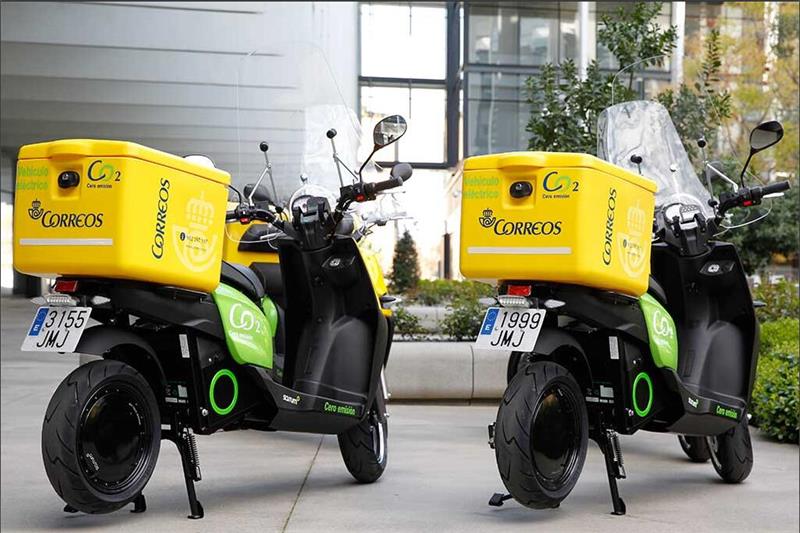

Application:
