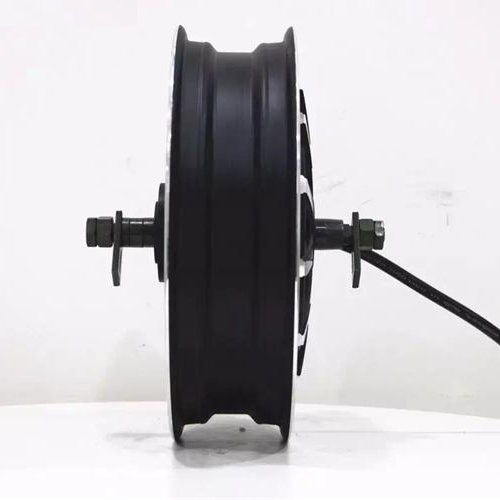

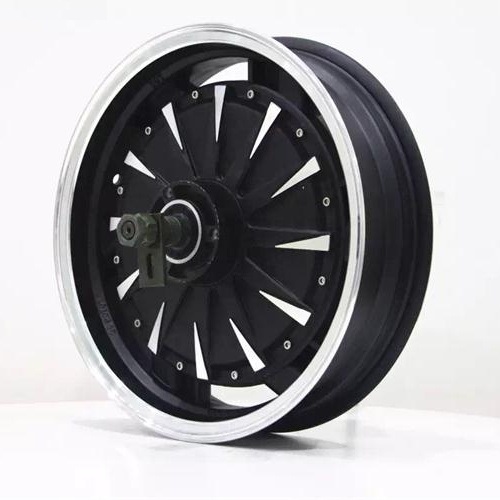

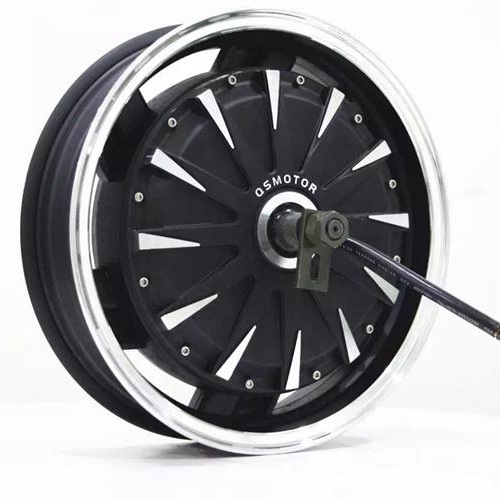

New Design 14inch 1500W-3000W Wheel Hub Motor(Low Cost type)

This 14inch Hub wheel Motor is new designed for electric scooter or electric motorcycle, rated power can be customized from 1500W to 3000W with Economic cost!



1. Motor Type: Brushless DC Hub Motor with Hall Sensor
2. Motor design: Double axle out with 13inch rim(Steel winding holder)
3. Rim size:2.75-14

4. Matching tire:110/80-14

5. Rated Power: 1500W,2000W, 3000W(Can be optional)
6. Rated Voltage: 48V(48V-72V Can be optional)
7. Speed: 40-70km/h(Can be customized)
8. Max No-load RPM: 900RPM
9. Max Torque: 120N.M
10. Max Efficiency: 86%
11. Brake type: Disc brake
12. Drop-outs: 200mm
13. Waterproof Grade: IP54
14. N.W./ G..W. : 24kgs /25kgs
15. Package Size: 43*43*41CM
