10'' qs hub motor

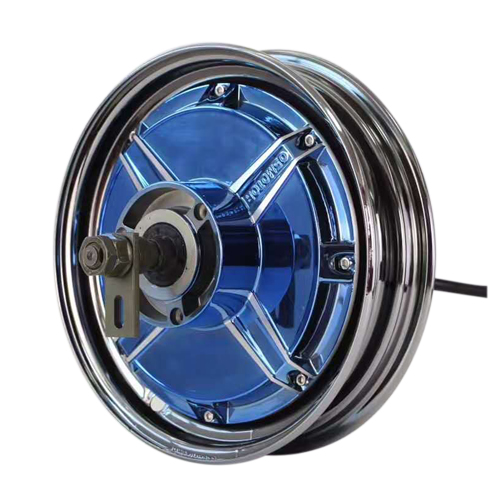

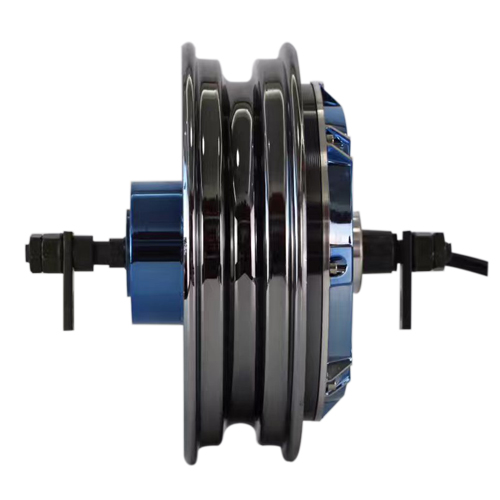

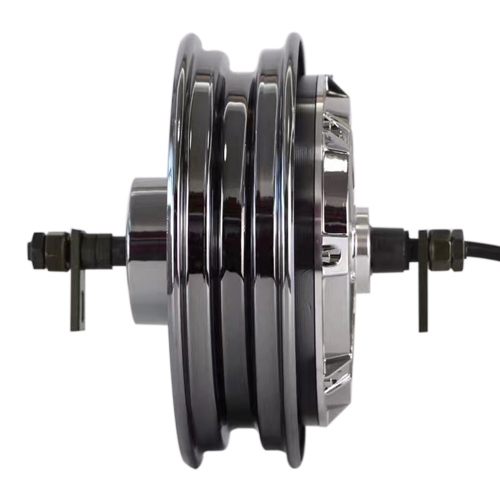

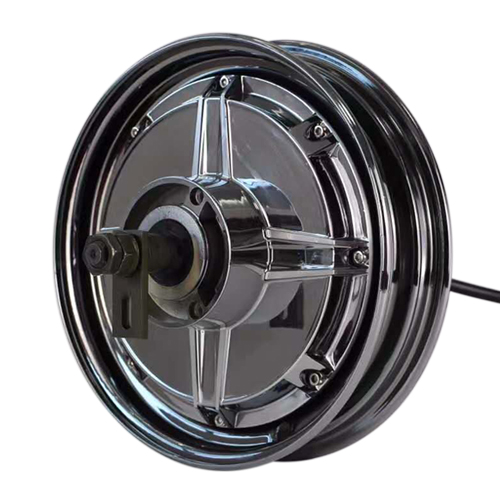

New Electroplating cover 10inch 3000W Brushless E-Scooter Hub Motor V3 Type

10inch E-Scooter In-Wheel Hub Motor(50H) 3000W V3 Type



10inch 3000W Hub Motor specially designed for powerful electric scooters, disc brake type is necessary,the max speed can be customized from 30-80KMPH.



Motor Specification:



  1. Motor Type: BLDC Hub Motor with Permanent Manget
  2. Motor design: Double axle out with 10inch rim
  3. Rim size:2.15-10
  4. Matached Tire: 3.0-10, 3.5-10
  5. Magnet Height: 50MM
  6. of Pole Pairs: 16 paris
  7. Rated Power: 3000W V3
  8. Peak Power: 5000W
  9. Rated Voltage: 72V( 48-96V Can be optional)
  10. Speed: 70km/h (30-80km/h can be customized)
  11. Max No-load RPM: 1000RPM
  12. Max Torque: 180N.M
  13. Max Efficiency: 91%
  14. Continious current:45A
  15. Max current:80A (Peak 100A in short time)
  16. Brake type: Disc brake
  17. Rear Fock width for installation: 200mm
  18. Winding Core material: Aluminium
  19. Cross Section of Phase wire: 10 mm2
  20. Hall sensor phasing angle: 120 degree
  21. Temperature Sensor: Optional
  22. Working Temperature: 70 degree, Peak 120 degree
  23. Waterproof Grade: IP54
  24. Color: Black or Silver
  25. W./ G..W. : 14kgs / 15kgs
  26. Package Size: 34*34*33CM

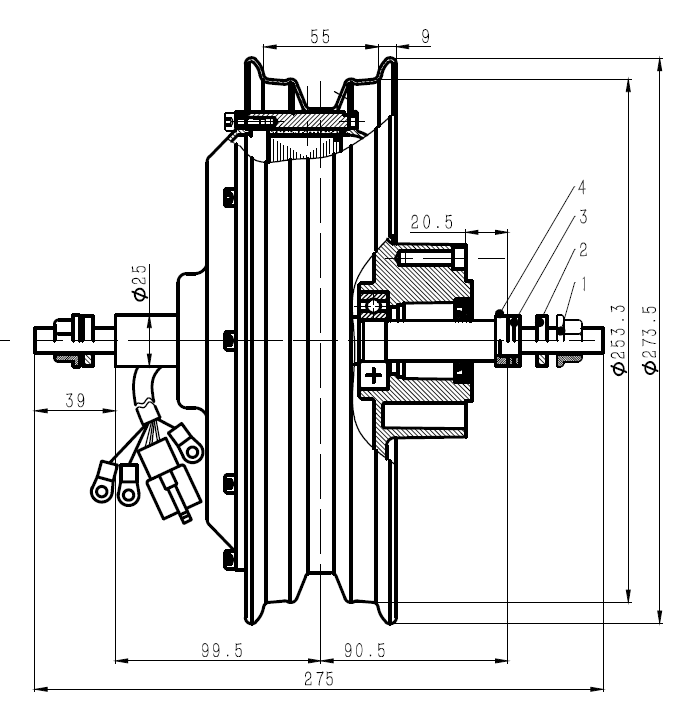

Motor Drawing:

QQ截图20150901151409
