1000W 10inch Burshless Hub Motor Electric Scooter Conversion Kits

Category: .

1000W 10inch Hub Motor with Controller and Throttle&Disc brake kits for Electric scooter



1. 205 10inch 1000W Brushless Hub Motor (40H)

IMG_2476

10inch 2.15x10

motor wires -



Motor Specification:



1.    Motor Type: BLDC Hub Motor with Permanent Manget

2.    Motor design: Double axle out with 10inch rim

3.    Rim size:2.15-10

4.    Matached Tire: 3.0-10, 3.5-10

5.    Magnet Height: 40MM

6.    Pole Pairs: 23 paris

7.    Rated Power: 1000W

8.    Max Power: 1600W

9.    Rated Voltage: 48V( 60V/72V Can be optional)

10.  Speed: 45km/h (30-55km/h can be customized)

11.  Max No-load RPM: 650RPM

12.  Max Torque: 98N.M

13.  Max Efficiency: 90%

14.  Continious current:23A

15.  Max current:40-45A (Peak 70A in short time)

16.  Brake type: Disc brake

17.  Rear Fock width for installation: 200mm

18.  Winding Core material: Aluminium

19.  Cross Section of Phase wire: 8 mm2

20.  Hall sensor phasing angle: 120 degree

21.  Temperature Sensor: Optional

22.  Max. Working Temperature: 70 degree, Peak 120 degree

23.  Waterproof Grade: IP54

24.  Color: Black or Silver

25.  N.W./ G..W. : 11kgs / 12kgs

26.  Package Size: 34*34*33CM

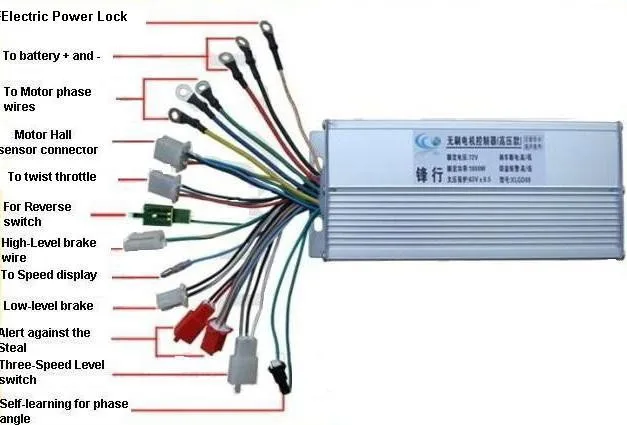

2.  1000W Brushless Motor Controller

1000W Controller 2



If you need any other function of the controller,please make a note when place order.

The voltage can be customized at 36V,48V,60V and 72V









3. Twist Hall Throttle



Hall 0-5V Twist Grip for normal electric bike or electric scooter
Wires instuction: RED to +5V   BLACK to GND   WHITE to SIGNAL WIRE





4. Disc Brake System with Caliper

Complete Oil-pressure Disc brake system for rear Hub Motor
Disc Size: 180mm
Disc Thickness:3.5mm

e-scooter disc brake
