QS MOTOR 8000W 14inch Electric motorcycle Hub Motor Conversion Kits with Kelly Controller KEB72101

Category: .

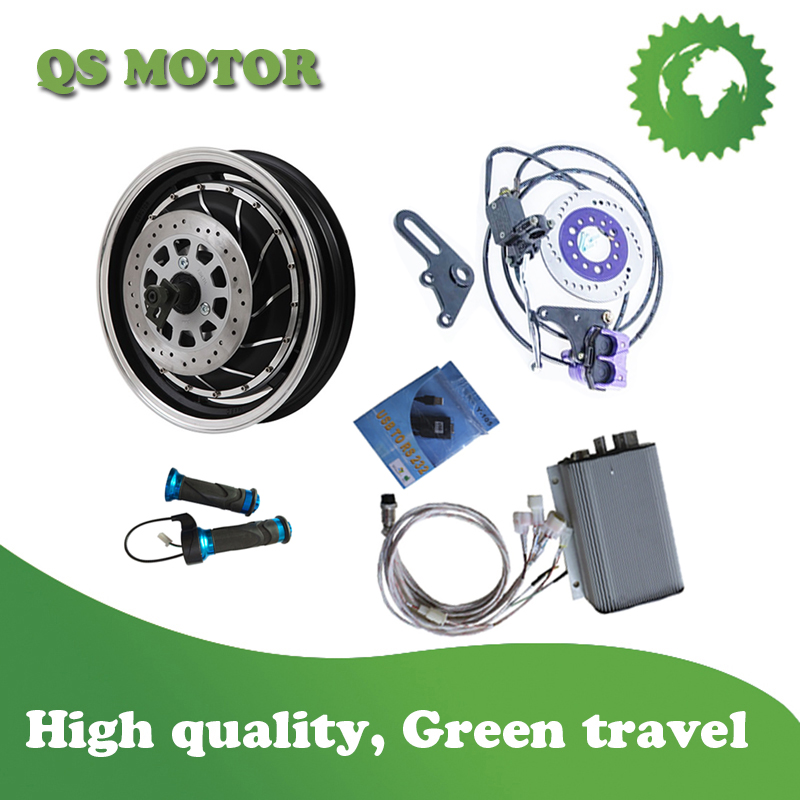

14inch 8000W 72V Electric Motorcycle Conversion Kits



The parts list as follows,



1pc x QS 14inch 8000W (50H) V3 Hub Motor

​1set x 220mm Disc brake system with caliper

1pc x Twist Hall Throttle

1pc x Kelly Controller KEB72101

1pc x Kelly Controller J2 Cable

1pc x Kelly Controller USB cable





14inch 273 E-Scooter In-Wheel Hub Motor(50H) 8000W V3 Type



16inch Hub Motor specially designed for electric motorcycle, the rated power can be made 2kw,3kw,4kw,5kw,6kw,7kw or 8kw. Max speed can be customized from 30-120KMPH.



Motor Specification:



1.    Motor Type: BLDC Hub Motor with Permanent Magnets

2.    Motor design: Double axle out with 17inch Aluminium rim

3.    Rim size:2.75×14

4.    Matching Tire: 110/90-14

5.    Magnet Height: 50MM

6.    Number of Pole Pairs: 16 pairs(32pcs Curved Magnets)

7.    Rated Power: 8000W V3

8.    Max Power:11250W(Peak 16000W)

9.    Rated Voltage: 72V( 72-144V Can be optional)

10.  Speed: 115km/h (30-120km/h can be customized)

11.  Max No-load RPM:1160RPM

12.  Max Torque: 200N.M

13.  Max Efficiency: 90%

14.  Continious current:130A

15.  Max current:190A ,Peak 260A

16.  Brake type: Disc brake

17.  Rear Fork width for installation: 200mm

18.  Winding Core material: Aluminium

19.  Cross Section of Phase wire: 16 mm2

20.  Hall sensor phasing angle: 120 degree

21.  Temperature Sensor: Optional

22.  Max. Working Temperature: 70 degree, Peak 120 degree

23.  Waterproof Grade: IP54

24.  Net Weight: 25KGS

25.  Package Size: 58*58*40CM



Kelly Programmable Controller KEB72101





controller keb72101 -



Kelly KEB programmable ebike brushless DC motor controller provides efficient, smooth and quiet controls for electric bicycle, electric motorcycle, scooter, etc. Ebike brushless motor controller outputs high taking off current, and strictly limit battery current. Motor speed controller can work with relative small battery, but provide good acceleration and hill climbing. BLDC motor speed controller uses high power MOSFET, PWM to achieve efficiency 99%. In most cases, Powerful microprocessor brings in comprehensive and precise control to BLDC motor controllers. This programmable brushless motor controller also allows users to set parameters, conduct tests, and obtain diagnostic information quickly and easily.
Features:
• Specially designed for electric motorcycle or electric vehicle
• Intelligence with powerful microprocessor.
• Synchronous rectification, ultra low drop, fast PWM to achieve very high efficiency.
• Electronic reversing.
• Voltage monitoring on 3 motor phases, bus, and power supply.
• Voltage monitoring on voltage source 12V and 5V.
• Current sense on all 3 motor phases.
• Current control loop.
• Hardware over current protection.
• Hardware over voltage protection.
• Support torque mode, speed mode, and balanced mode operation.
• Configurable limit for motor current and battery current.
• Battery current limiting available, doesn’t affect taking off performance.
• More startup current ,can get more startup speed.
• Low EMC.
• LED fault code.
• Battery protection: current cutback, warning and shutdown at configurable high and low battery voltage.
• Rugged aluminum housing for maximum heat dissipation and harsh environment.
• Rugged high current terminals, and rugged aviation connectors for small signal.
• Thermal protection: current cut back, warning and shutdown on high temperature.
• Configurable 60 degree or 120 degree hall position sensors.
• Support motors with any number of poles.
• Up to 40,000 electric RPM standard. Optional high speed 70,000 ERPM, and ultra high speed 100,000 ERPM. (Electric RPM = mechanical RPM * motor pole pairs).
• Brake switch is used to start regen.
• 0-5V brake signal is used to command regen current.
• Support three modes of regenerative braking: brake switch regen, release throttle regen,0-5V analog signal variable regen.
• Configurable high pedal protection: the controller will not work if high throttle is detected at power on.
• Current multiplication: Take less current from battery, output more current to motor.
• Easy installation: 3-wire potentiometer will work.
• Current meter output.
• Standard PC/Laptop computer to do programming. No special tools needed.
• User program provided. Easy to use. No cost to customers.
General Specifications:
•Frequency of Operation: 16.6kHz.
•Standby Battery Current: < 0.5mA.
•5V Sensor Supply Current: 40mA.
•Controller supply voltage range, PWR, 18V to 90V.
•Supply Current, PWR, 150mA.
•Configurable battery voltage range, B+. Max operating range: 18V to 90V.
•Analog Brake and Throttle Input: 0-5 Volts. Producing 0-5V signal with 3-wire pot.
•Full Power Operating Temperature Range: 0℃ to 50℃ (controller case temperature).
•Operating Temperature Range: -30℃ to 90℃, 100℃ shutdown (controller case temperature).
•Peak Phase Current, 10 seconds: 450A.
•Continuous Phase Current Limit: 180A.
•Maximum Battery Current: Configurable





Twist Hall throttle for electric Scooter or Electric bike

2 (1)

Inner Hole diameter  2.3mm
Throttle bar length 15CM

Wires definition

Thin Red wire +5V
Black wire  GND
White wire  Hall Signal
The throttle can be fitted to any electric scooter or electric motorcycle.
The Throttle color will be randam delivery
