1000W Spoke Hub Motor V2 Type for Electric motorcycle



205 Spoke Hub Motor(40H) 1000W V2 Type



The 205 Spoke Hub Motor specially designed for Electric bicycle or Electric motorcycle, drum brake or disc brake type can be optional, speed can be customized from 25-70KMPH.



Motor Specification:



  1. Motor Type: BLDC Hub Motor with Permanent Manget
  2. Motor design: Double axle out
  3. Spoke hole: 3.4mm x 36pcs
  4. Matching Rim:16inch-26inch
  5. Magnet Height: 40MM
  6. of Pole Pairs: 23 paris
  7. Rated Power: 1000W
  8. Max Power: 1600W
  9. Rated Voltage: 48V( 60V/72V Can be optional)
  10. Speed: 45km/h (30-55km/h can be customized)
  11. Max No-load RPM: 650RPM
  12. Max Torque: 98N.M
  13. Max Efficiency: 90%
  14. Continious current:23A
  15. Max current:40-45A (Peak 70A in short time)
  16. Brake type: Disc brake or Brum brake(Optional)
  17. Rear Fork width for installation: 200mm
  18. Winding Core material: Aluminium
  19. Cross Section of Phase wire: 8 mm2
  20. Hall sensor phasing angle: 120 degree
  21. Temperature Sensor: Optional
  22. Working Temperature: 70 degree, Peak 120 degree
  23. Waterproof Grade: IP54
  24. Color: Black or Silver
  25. W./ G..W. : 11kgs / 12kgs
  26. Package Size: 34*34*33CM

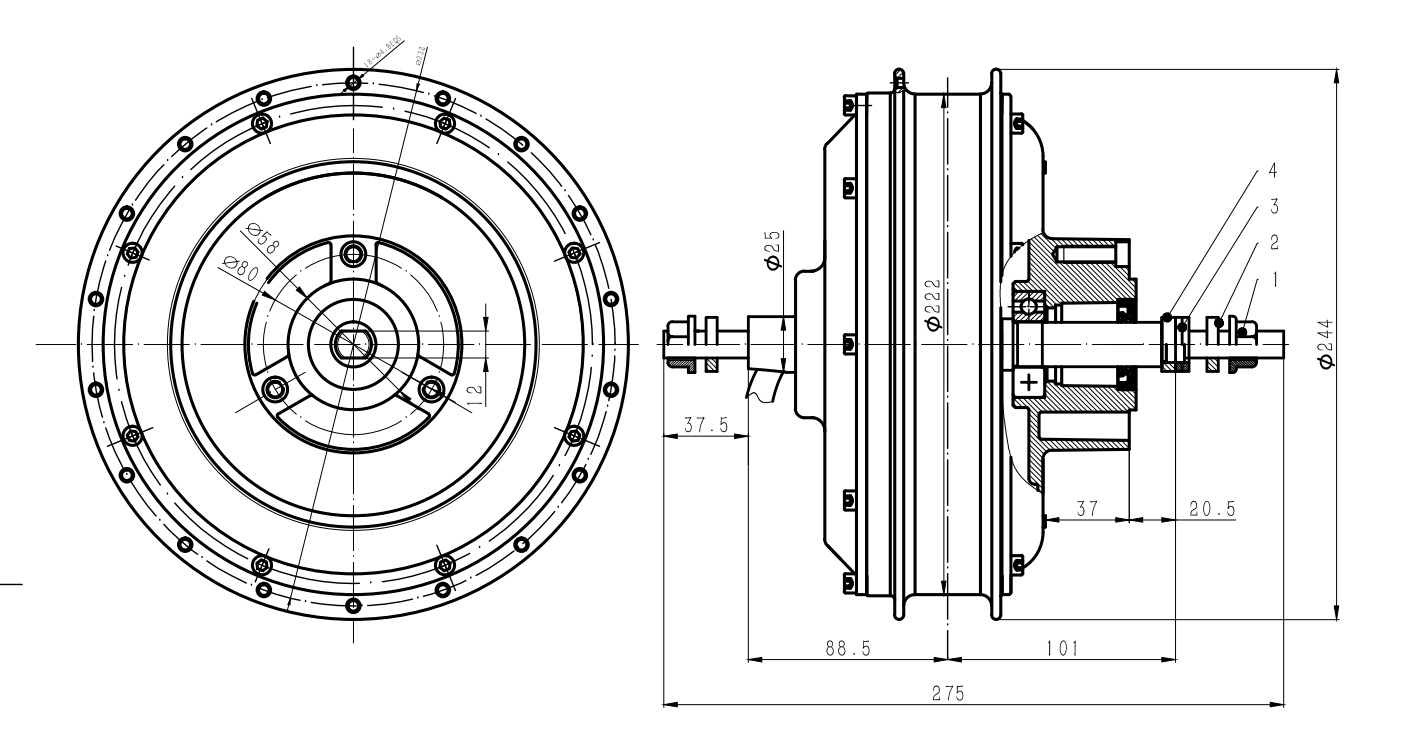

205辐条 200MM
