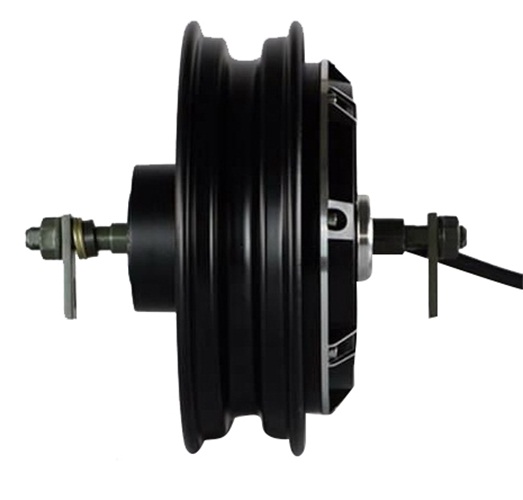

QS205 10inch 4000W V3 Electric Scooter Hub Motor

QS205 10inch 4000W 55H v3 E-Scooter In-Wheel Hub Motor


10inch 4000W Hub Motor specially designed for powerful electric scooters with disc brake, the max speed can reach 90-100km/h.


Motor Specification:

  1. Motor Type: BLDC Hub Motor with Permanent Manget
  2. Motor design: Double axle out with 10inch rim
  3. Rim size:2.15-10,3.0-10
  4. Matached Tire: 3.0-10, 3.5-10
  5. Magnet Height: 55MM
  6. of Pole Pairs: 23 paris
  7. Rated Power: 4000W
  8. Peak Power: 8000W
  9. Rated Voltage: 72V
  10. Speed: 90-100km/h
  11. Max No-load RPM: 1400RPM
  12. Max Torque: 190N.M
  13. Max Efficiency: 88%
  14. Continious current:61A
  15. Max current:90A
  16. Brake type: Disc brake or Brum brake(Optional)
  17. Rear Fock width for installation: 200mm
  18. Winding Frame material: Aluminium
  19. Cross Section of Phase wire: 10 mm2
  20. Hall sensor phasing angle: 120 degree
  21. Temperature Sensor: Optional
  22. Working Temperature: 70 degree, Peak 150 degree
  23. Waterproof Grade: IP66
  24. Color: Black
  25. W./ G..W. : 15kgs / 16kgs
  26. Package Size: 34*34*33CM


Motor Drawing:
