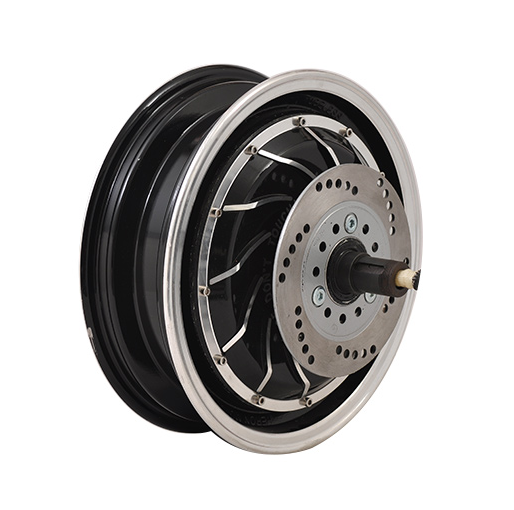

12inch 2000W-4000W Single Shaft Hub Motor

The 12inch Single Shaft hub motor is designed for Electric scooter single swing arm,like small electric car, etc. The rated power can be customized 2000W,3000W or 4000W

1. Motor Type: Brushless DC Hub Motor with Hall Sensor
2. Motor design: Single Shaft hub motor 12inch Rim

3. Rated Power:2000W,3000W or 4000W(Can be optional)
4. Rated Voltage: 48V/60V/72V/84V/96V(Can be optional)
5. Speed: 45-80km/h(Can be customized)
6. Max No-load RPM: 1000RPM
7. Max Torque: 150N.M
8. Max Efficiency: 88%
9. Brake type: Disc brake
10. Waterproof Grade: IP54
11. N.W./ G..W. : 18kgs /19kgs
12. Package Size: 31*31*31CM
