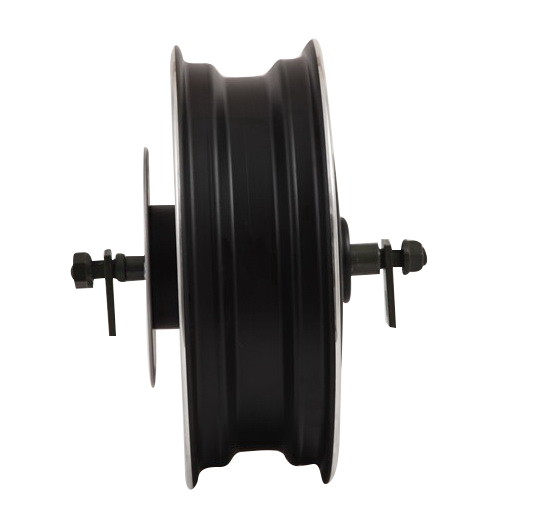

QS205 12inch 1000W V1 Hub Motor with wide rim

QS205 12inch E-Scooter In-Wheel Hub Motor(40H) 1000W V1 Type

 12inch 1000W Hub Motor specially designed for electric scooters, drum brake or disc brake type can be optional, speed can be customized from 25-45KMPH.


 Motor Specification:

  1. Motor Type: BLDC Hub Motor with Permanent Magnet
  2. Motor design: Double axle out with 12inch Aluminium rim
  3. Rim size:3.5×12,2.15×12
  4. Matching Tire: 120/70-12,90/90-12
  5. Magnet Height: 40MM
  6. of Pole Pairs: 23 paris
  7. Rated Power: 1000W
  8. Max Power: 1600W
  9. Rated Voltage: 48V( 60V/72V Can be optional)
  10. Speed: 50km/h (30-50km/h can be customized)
  11. Max No-load RPM: 660RPM
  12. Max Torque: 98N.M
  13. Max Efficiency: 86%
  14. Continious current:23A
  15. Max current:45A

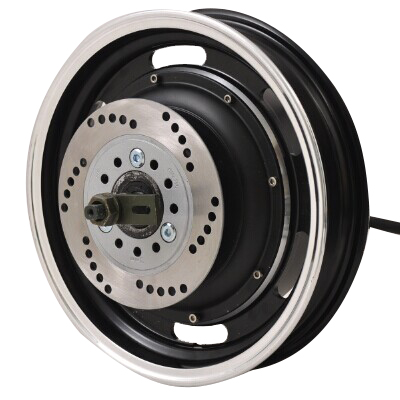

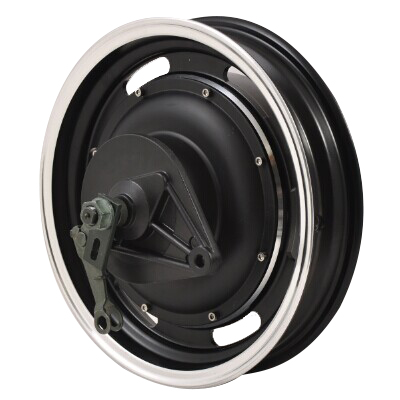

  16. Brake type: Disc brake or Brum brake(Optional)
  17. Rear Fork width for installation: 200mm
  18. Winding Core material: IRON
  19. Cross Section of Phase wire: 6 mm2
  20. Hall sensor phasing angle: 120 degree
  21. Temperature Sensor: Optional
  22. Working Temperature: 70 degree, Peak 120 degree
  23. Waterproof Grade: IP54
  24. Color: Black or Silver
  25. W./ G..W. : 15kgs / 16kgs
  26. Package Size: 44*43*34CM

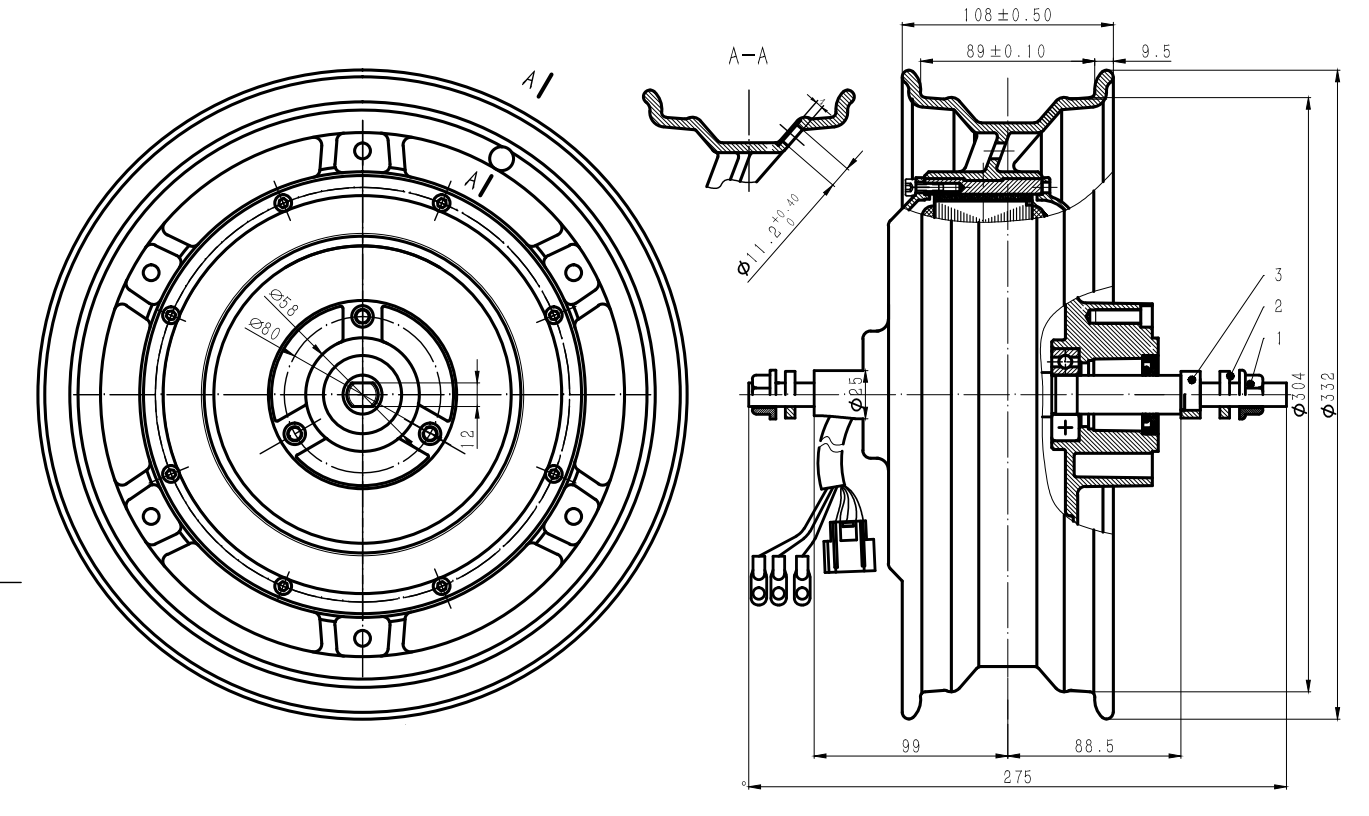

12inch hub motor 3.5x12
