QS260 13INCH HUB MOTOR

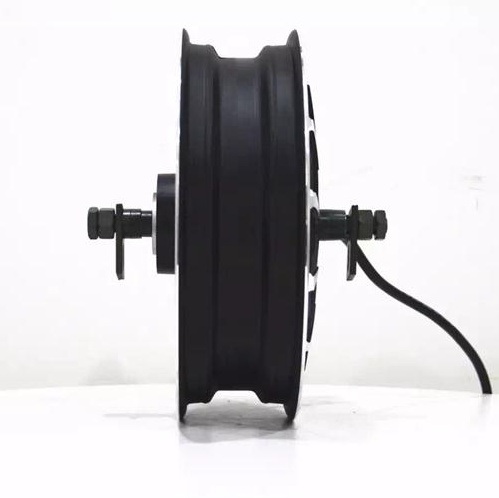

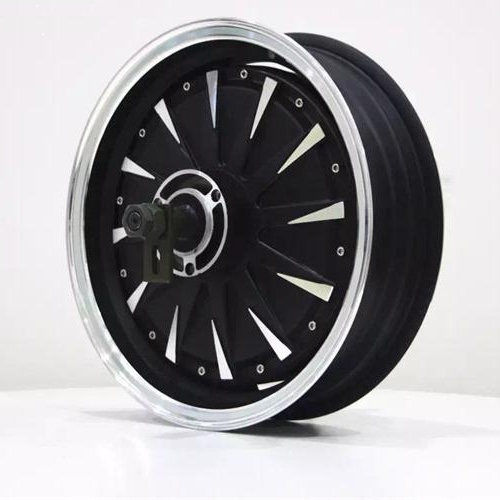

QS260 13inch 2000W V1 E-Scooter Hub Motor

13inch 260 E-Scooter Hub Motor(35H) 2000W V1 Type



12inch 260 Hub Motor specially designed for electric motorcycle or electric scooters, the rated power can be made at 1500W,2000W,3000W or 5000W. Max speed can be customs at 35-100km/h.



Motor Specification:



  1. Motor Type: BLDC Hub Motor with Permanent Magnet
  2. Motor design: Double axle out with 13inch rim
  3. Rim size:3.5×13
  4. Matching Tire: 130/70-13
  5. Magnet Height: 35MM
  6. of Pole Pairs: 23 pairs
  7. Rated Power: 2000W
  8. Max Power: 2500W
  9. Rated Voltage: 48V( 60V/72V Can be optional)
  10. Speed: 45km/h (30-60km/h can be customized)
  11. Max No-load RPM: 650RPM
  12. Max Torque: 110N.M
  13. Max Efficiency: 86%
  14. Continious current:48A
  15. Max current:60A
  16. Brake type: Disc brake
  17. Rear Fork width for installation: 200mm
  18. Winding Frame Material: Iron
  19. Cross Section of Phase wire: 6 mm2
  20. Hall sensor phasing angle: 120 degree
  21. Temperature Sensor: Optional
  22. Working Temperature: 70 degree, Peak 120 degree
  23. Waterproof Grade: IP66
  24. Color: Black
  25. W./ G..W. : 20kgs / 21kgs
  26. Package Size: 44*43*41CM
