12inch V3 hub motor

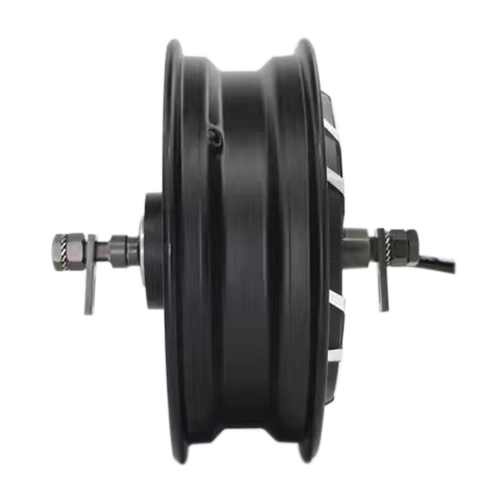

QS260 12inch 3000W V4 E-Scooter Hub Motor

QS260 12inch E-Scooter Hub Motor(40H) 3000W V4 Type


12inch 260 Hub Motor specially designed for electric motorcycle or electric scooters, the rated power can be made at 1500W,2000W,3000W or 5000W. Max speed can be customs at 35-100km/h.


Motor Specification:

  1. Motor Type: BLDC Hub Motor with Permanent Manget
  2. Motor design: Double axle out with 10inch rim
  3. Rim size:3.5×12
  4. Matached Tire: 120/70-12
  5. Magnet Height: 40MM
  6. of Pole Pairs: 16 paris
  7. Rated Power: 3000W
  8. Max Power: 6700W
  9. Rated Voltage: 72V( 60V-96V Can be optional)
  10. Speed: 80km/h (30-100km/h can be customized)

  1. Max Torque: 190N.M
  2. Max Efficiency: 90%
  3. Continious current:46A at 72V
  4. Max current:100A at 72V
  5. Brake type: Disc brake
  6. Rear Fock width for installation: 200mm
  7. Stator Holder material: Aluimium
  8. Cross Section of Phase wire: 16mm2
  9. Hall sensor phasing angle: 120 degree
  10. Temperature Sensor: Optional
  11. Working Temperature: 70 degree, Peak 120 degree
  12. Waterproof Grade: IP66
  13. Color: Black
  14. W./ G..W. : 17kgs / 18kgs
  15. Package Size: 44*43*34CM
