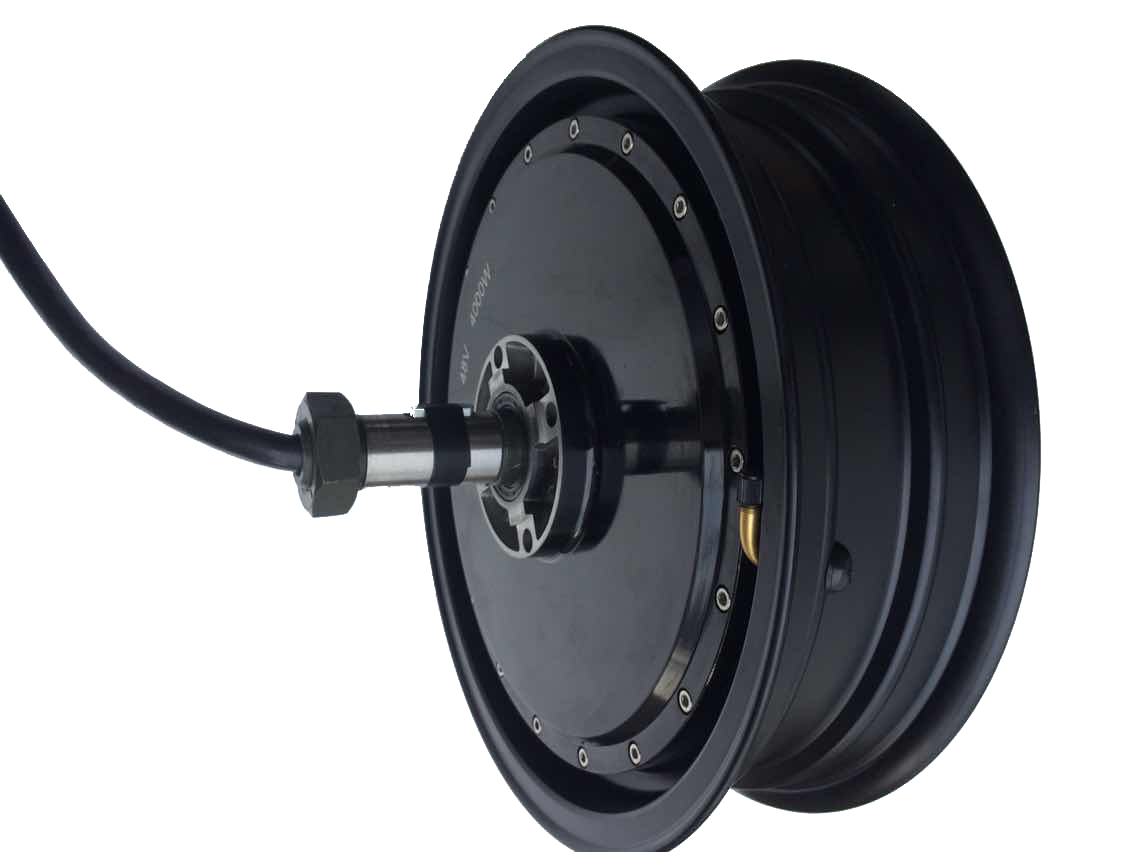

13inch 3000W Single Shaft E-Max Hub Motor with removable rim

13inch Single shaft Hub Motor(40H) With Removable Rim 4000W V2 Type

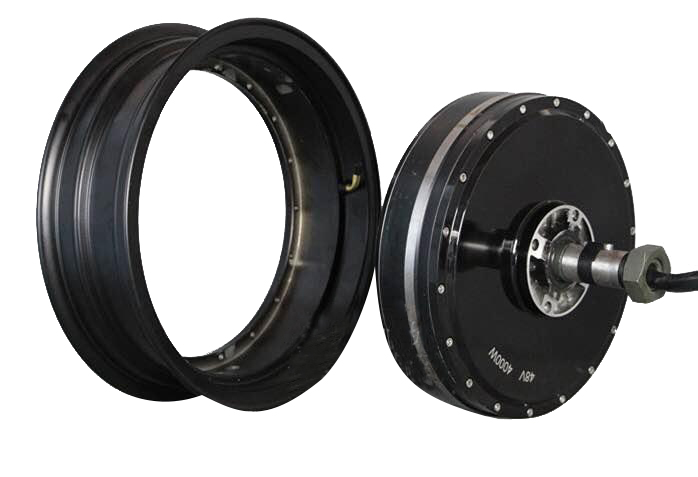

13inch Single Shaft Hub Motor with Removable rim is new designed for electric scooters and small Electric vehicles. The rim can be easily removable, so it will be very easy to replace and repair the tires.



Motor Specification:



  1. Motor Type: BLDC Hub Motor with Permanent Magnets
  2. Motor design: Double axle out with 13inch Removable rim
  3. Rim size:3.5×13
  4. Matching Tire: 130/60-13
  5. Magnet Height: 40MM
  6. of Pole Pairs: 28 pairs
  7. Rated Power: 4000W
  8. Max Power:4950W(Peak 8000W)
  9. Rated Voltage: 72V( 48-96V Can be optional)
  10. Speed: 80km/h (30-80km/h can be customized)
  11. Max No-load RPM:1000RPM
  12. Max Torque: 185N.M
  13. Max Efficiency: 88%
  14. Continious current:67A
  15. Max current:80A Peak 140A
  16. Brake type: Disc brake
  17. Rear Fock width for installation: 200mm
  18. Winding Core material: Aluminium
  19. Cross Section of Phase wire: 10 mm2
  20. Hall sensor phasing angle: 120 degree
  21. Temperature Sensor: Optional
  22. Working Temperature: 70 degree, Peak 120 degree
  23. Waterproof Grade: IP54
  24. W./ G..W. : 21kgs / 22kgs
  25. Package Size: 44*43*34CM

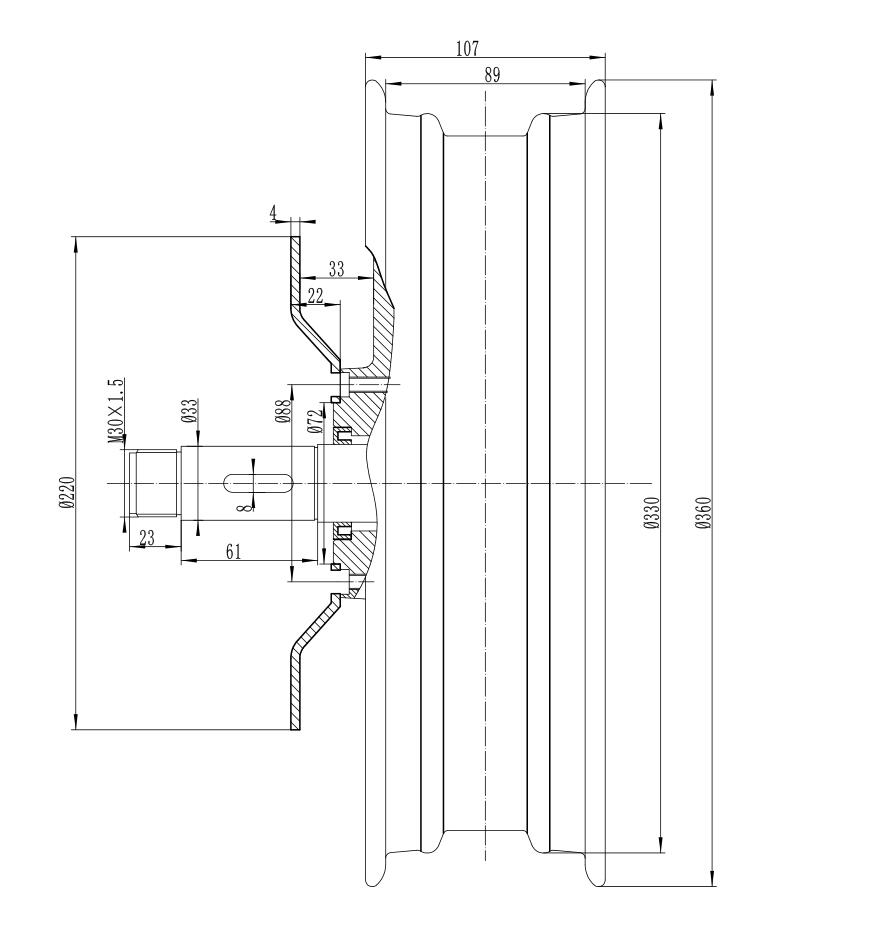

13inch-e-max-drawing



Application:
