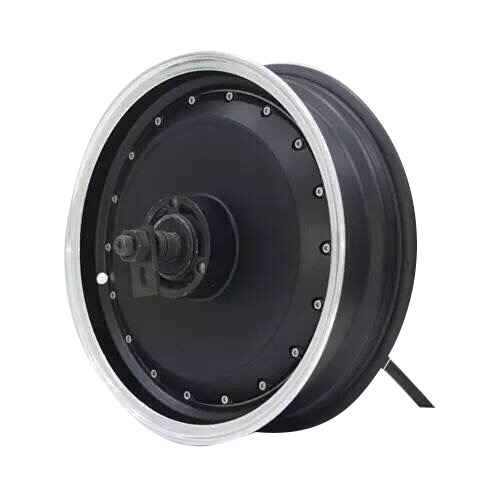

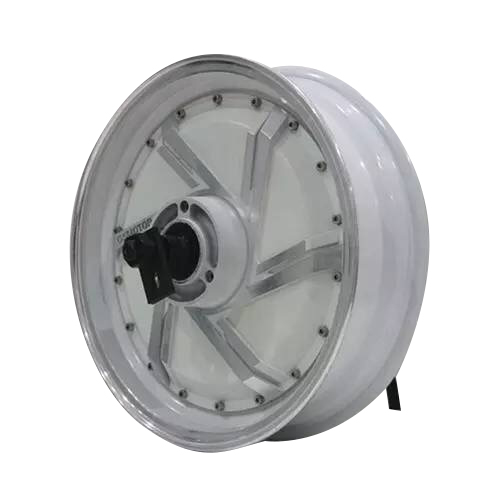

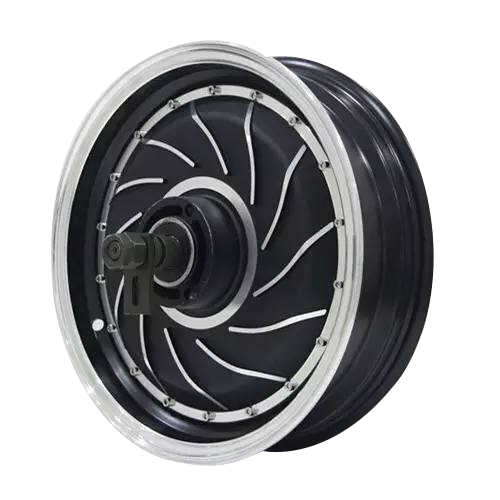

QS273 13inch 3000W V2 In-Wheel Hub Motor

13inch 273 E-Scooter In-Wheel Hub Motor(40H) 3000W V2 Type



13inch Hub Motor specially designed for electric scooters and electric motorcycle, the rated power can be made 2kw,3kw,4kw,5kw,6kw,7kw or 8kw. Max speed can be customized from 30-120KMPH.



Motor Specification:



  1. Motor Type: BLDC Hub Motor with Permanent Magnets
  2. Motor design: Double axle out with 13inch Aluminium rim
  3. Rim size:3.5×13
  4. Matching Tire: 130/70-13
  5. Magnet Height: 40MM
  6. Pole Pairs: 28 pairs
  7. Rated Power: 3000W
  8. Peak Power:5200W
  9. Rated Voltage: 72V( 48-96V Can be optional)
  10. Speed: 70km/h (30-80km/h can be customized)
  11. Max No-load RPM:900RPM
  12. Max Torque: 185N.M
  13. Max Efficiency: 88%
  14. Continious current:50A
  15. Max current:100A
  16. Brake type: Disc brake
  17. Rear Fork width for installation: 200mm
  18. Winding Frame material: Aluminium
  19. Cross Section of Phase wire: 10 mm2
  20. Hall sensor phasing angle: 120 degree
  21. Temperature Sensor: Optional
  22. Working Temperature: 70 degree, Peak 120 degree
  23. Waterproof Grade: IP66
  24. W./ G..W. : 21kgs / 22kgs
  25. Package Size: 44*43*34CM

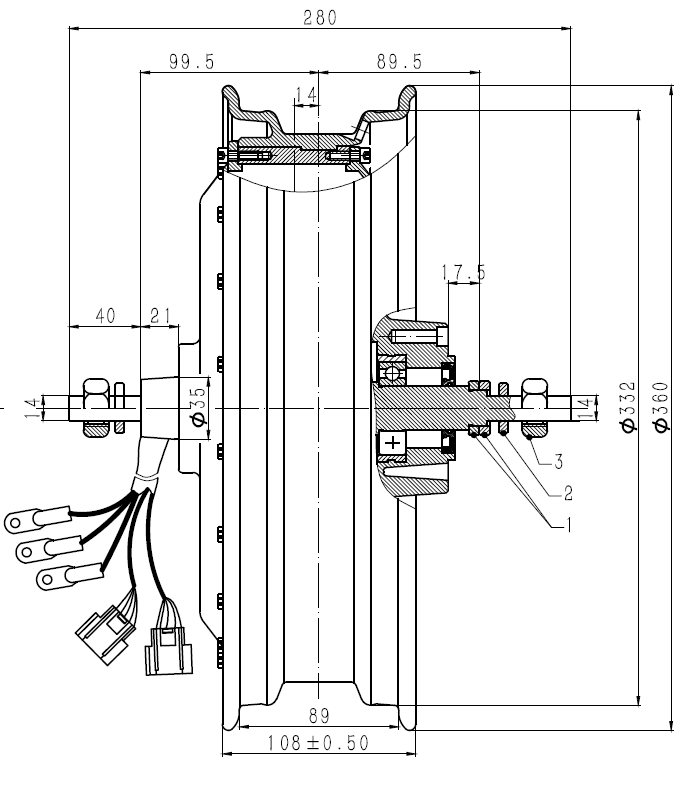

Motor drawing as follows,

QQ截图20150906164340
