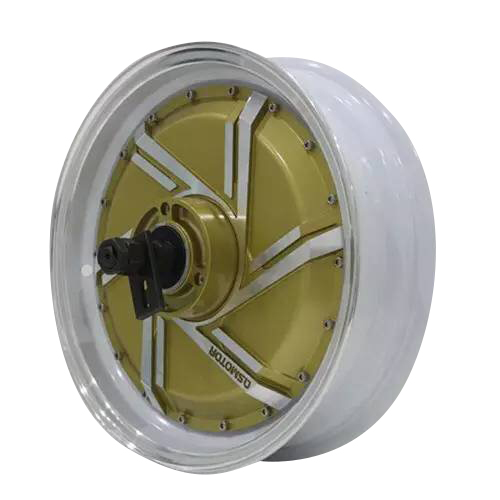

13inch 6000W In-Wheel Hub Motor V2Type for Electric Motorcycle

13inch 273 E-Scooter In-Wheel Hub Motor(45H) 6000W V2 Type



13inch Hub Motor specially designed for electric scooters and electric motorcycle, the rated power can be made 2kw,3kw,4kw,5kw,6kw,7kw or 8kw. Max speed can be customized from 30-120KMPH.



Motor Specification:



  1. Motor Type: BLDC Hub Motor with Permanent Magnets
  2. Motor design: Double axle out with 13inch Aluminium rim
  3. Rim size:3.5×13
  4. Matching Tire: 130/60-13
  5. Magnet Height: 45MM
  6. of Pole Pairs: 28 pairs
  7. Rated Power: 6000W
  8. Max Power:7905W(Peak 12000W)
  9. Rated Voltage: 72V( 72-144V Can be optional)
  10. Speed: 110km/h (30-110km/h can be customized)
  11. Max No-load RPM:1339RPM
  12. Max Torque: 200N.M
  13. Max Efficiency: 88%
  14. Continious current:91A
  15. Max current:119A ,Peak 180A
  16. Brake type: Disc brake
  17. Rear Fock width for installation: 200mm
  18. Winding Core material: Aluminium
  19. Cross Section of Phase wire: 16 mm2
  20. Hall sensor phasing angle: 120 degree
  21. Temperature Sensor: Optional
  22. Working Temperature: 70 degree, Peak 120 degree
  23. Waterproof Grade: IP54
  24. W./ G..W. : 21kgs / 22kgs
  25. Package Size: 44*43*34CM
