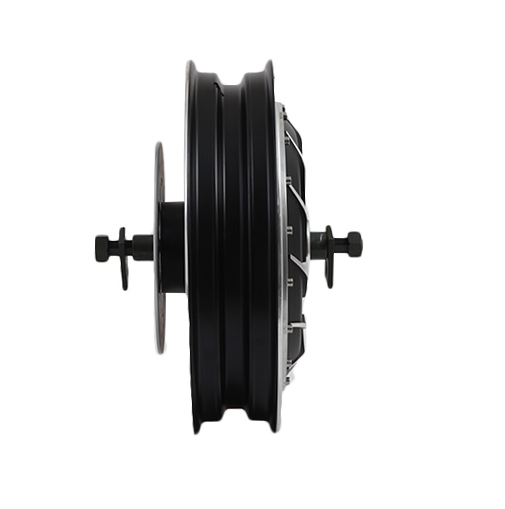

14inch 7000W In-Wheel Hub Motor(40H) V2 for Electric Motorcycle

14inch 2000W-8000W high power Hub Motor for electric motorcycle or electric scooter



14inch 273 E-Scooter In-Wheel Hub Motor(50H) 7000W V2 Type



14inch Hub Motor specially designed for electric scooters and electric motorcycle, the rated power can be made 2kw,3kw,4kw,5kw,6kw,7kw or 8kw. Max speed can be customized from 30-120KMPH.



Motor Specification:



  1. Motor Type: BLDC Hub Motor with Permanent Magnets
  2. Motor design: Double axle out with 14inch Aluminium rim
  3. Rim size:2.75×14, 2.15×14
  4. Matching Tire: 110/80-14,90/90-14
  5. of Pole Pairs: 28 pairs
  6. Rated Power: 7000W
  7. Max Power:8600W(Peak 14000W)
  8. Rated Voltage: 72V( 72-144V Can be optional)
  9. Speed: 115km/h (30-115km/h can be customized)
  10. Max No-load RPM:1440RPM
  11. Max Torque: 200N.M
  12. Max Efficiency: 86%
  13. Continious current:114A
  14. Max current:140A ,Peak 240A
  15. Brake type: Disc brake
  16. Rear Fork width for installation: 200mm
  17. Winding Core material: Aluminium
  18. Cross Section of Phase wire: 16 mm2
  19. Hall sensor phasing angle: 120 degree
  20. Temperature Sensor: Optional
  21. Working Temperature: 70 degree, Peak 120 degree
  22. Waterproof Grade: IP54
  23. W./ G..W. : 22kgs / 23kgs
  24. Package Size: 44*43*34CM



Motor drawing as follows,

QQ截图20150826160251
