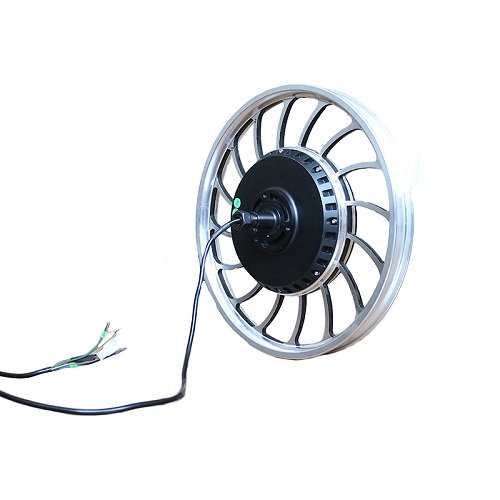

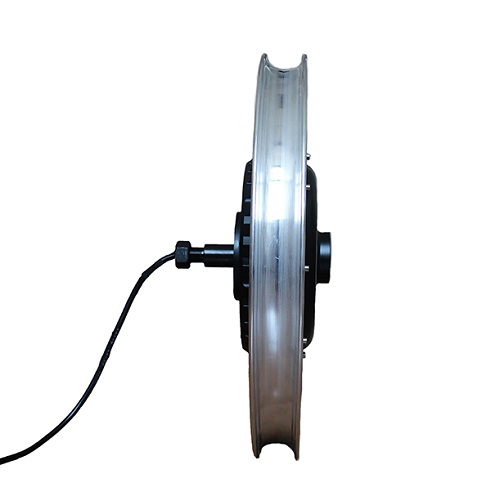

20” 1000W Single Axle out Hub Motor

20” 1000W Single shaft out Hub Motor



Motor Specification:

  1. Motor Type: BLDC Hub Motor with Permanent Magnets
  2. Motor design: 20” Single- axle out hub motor
  3. Rim size:2.125×20
  4. Matching Tire: 2.5-20
  5. Magnet Height: 30MM
  6. Pole Pairs: 23 pairs
  7. Rated Power:1000W
  8. Max Power: 1600W
  9. Rated Voltage: 48V
  10. Speed: 45km/h (25-55km/h can be customized)
  11. Max No-load RPM: 700RPM
  12. Max Torque: 70N.M
  13. Max Efficiency: 88%
  14. Continious current:23A
  15. Max current:45A
  16. Brake type: Disc brake
  17. Cross Section of Phase wire: 4 mm2
  18. Hall sensor phasing angle: 120 degree
  19. Working Temperature: 70 degree, Peak 120 degree
  20. Waterproof Grade: IP54
  21. W./ G..W. : 8kgs / 9kgs
  22. Package Size: 48*48*22CM
