273 hub motor

QS273 6000W 45H Electric Car Hub Motor V3 Type

Category: .

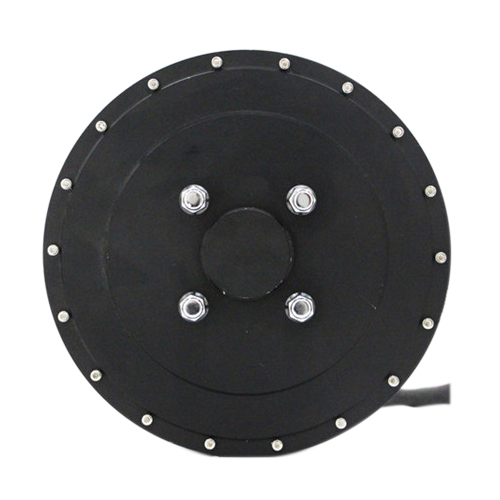

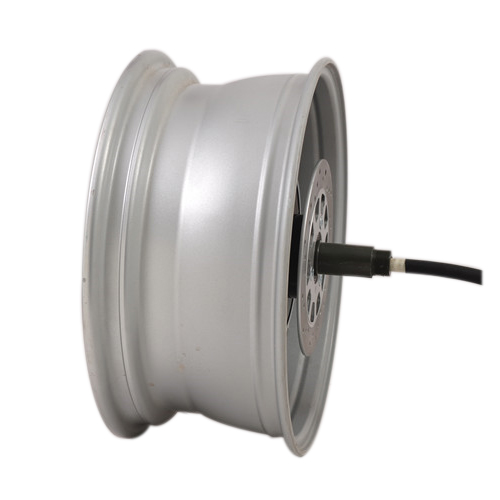

273 Car Hub Motor(45H) 6000W V2 Type



273 Single Shaft Car Hub Motor specially designed for Electric Car or 4-wheel electric vehicles, the rated power can be made 5000W,6000W OR 8000W for options.



Motor Specification:



  1. Motor Type: BLDC Hub Motor with Permanent Magnet
  2. Motor design: Single axle out without rim
  3. PCD for rim installation: 4 x100mm, 5×114.3mm
  4. CB:60MM/70MM
  5. Magnet Height:45MM
  6. of Pole Pairs: 28 pairs
  7. Rated Power: 6000W V2
  8. Peak Power: 10390W(Peak 12000W)
  9. Rated Voltage: 72V( 60V-144V Can be optional)
  10. Speed: 100km/h (40-100km/h can be customized)
  11. Max No-load RPM: 1000RPM
  12. Max Torque: 250N.M
  13. Max Efficiency: 88%
  14. Continious current:88A
  15. Max current:120A (Peak 170A in short time)
  16. Brake type: Disc brake
  17. Winding Core material: Aluminium
  18. Cross Section of Phase wire: 16 mm2
  19. Hall sensor phasing angle: 120 degree
  20. Temperature Sensor: Optional
  21. Working Temperature: 70 degree, Peak 120 degree
  22. Waterproof Grade: IP54
  23. Color: Black
  24. W./ G..W. : 25kgs /26kgs
  25. Package Size: 44*43*34CM

Motor Drawing:

273%e6%b1%bd%e8%bd%a6
