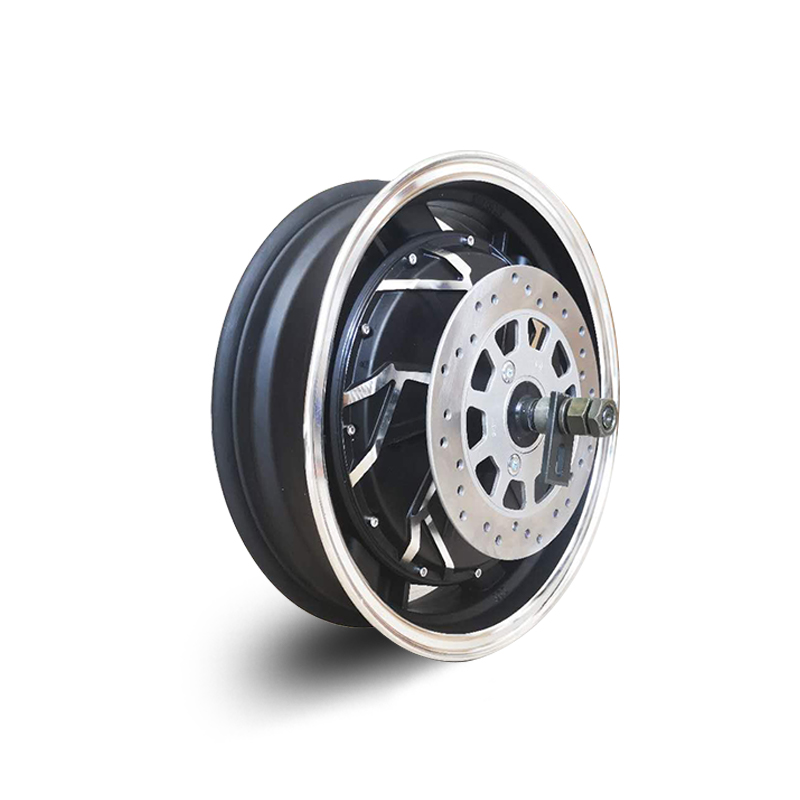

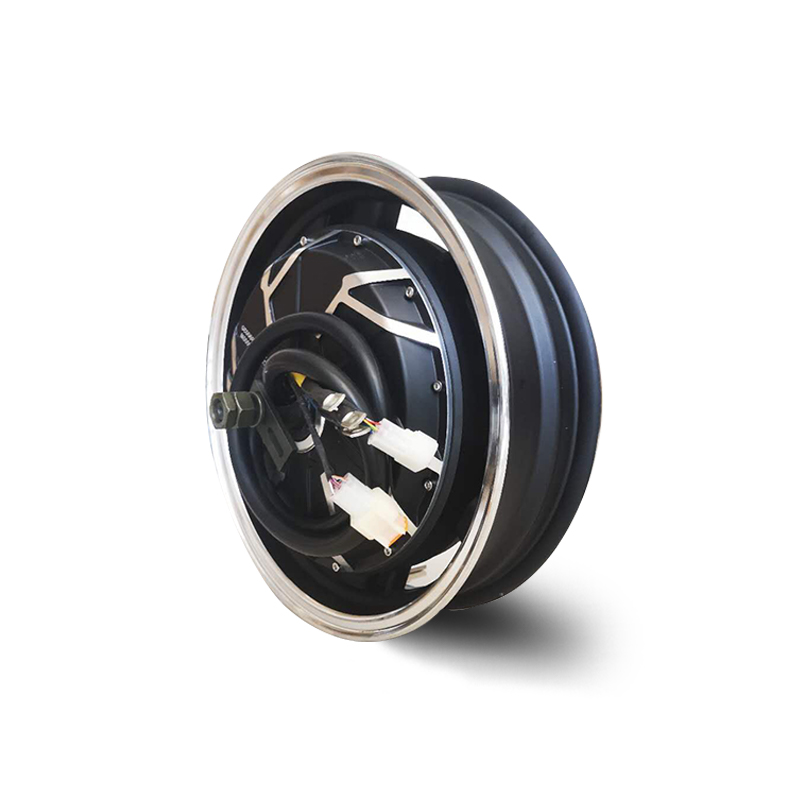

QS260 14inch 3000W V4 E-Scooter Hub Motor

QS260 14INCH E-Scooter Hub Motor(40H) 3000W V4 Type

14inch 260 Hub Motor specially designed for electric motorcycle or electric scooters, the rated power can be made at 1500W,2000W,3000W or 5000W. Max speed can be customs at 35-100km/h.

Motor Specification:

1. Motor Type: BLDC Hub Motor with Permanent Magnets
2. Motor design: Double axle out with 14inch RIM
3. Rim size:3.5×14
4. Matching Tire: 130/60-14
5. Magnet Height: 40MM Curved Magnets
6. Pole Pairs: 16 pairs
7. Rated Power: 3000W
8. Peak Power: 6000W
9. Rated Voltage: 72V( 48V,60V and 72V Can be optional)
10. Different winding RPM:

1. Max Torque: 240N.M
2. Max Efficiency: 91%
3. Continious current:46A at 72V
4. Max current:80A at 72V
5. Brake type: Disc brake
6. Rear Fork width for installation: 200mm
7. Hall sensor: Two group of Hall sensors(Model:SS413F)
8. Winding Frame material: Aluimium
9. Cross Section of Phase wire: 16mm2
10. Hall sensor phasing angle: 120 degree
11. Temperature Sensor: KTY83-122
12. Working Temperature: 70-120 degree, Peak 150 degree
13. Waterproof Grade: IP66
14. Working system: S9
15. Cooling method: Natual
16. Color: Black
17. W./ G..W. : 18.5kgs / 20kgs
18. Package Size: 44*43*34CM
