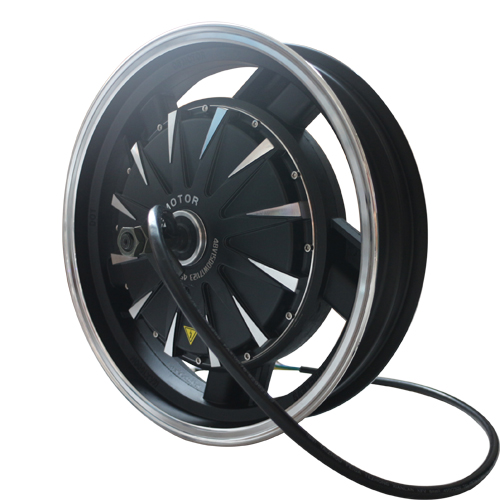

QS260 16inch 2000W E-Motorcyle Hub Motor

16inch 254 E-Scooter Hub Motor(35H) 2000W V1 Type



Motor Specification:

  1. Motor Type: BLDC Hub Motor with Permanent Magnet
  2. Motor design: Double axle out with 16inch rim
  3. Rim size:2.75×16,3.5×16
  4. Matching Tire: 100/90-16, 120/70-16, 130/70-16
  5. Magnet Height: 35MM
  6. Pole Pairs: 24 pairs
  7. Rated Power: 2000W
  8. Max Power: 3200W
  9. Rated Voltage: 48V,60V,72V
  10. Speed: 45km/h (30-65km/h can be customized)
  11. Max No-load RPM: 800RPM
  12. Max Torque: 130N.M
  13. Max Efficiency: 90%
  14. Continious current:40A at 72V
  15. Brake type: Disc brake
  16. Rear Fork width for installation: 200mm
  17. Cross Section of Phase wire: 6 mm2
  18. Hall sensor phasing angle: 120 degree
  19. Temperature Sensor: Optional
  20. Working Temperature: 70 degree, Peak 120 degree
  21. Waterproof Grade: IP67
  22. Color: Black
  23. W./ G..W. : 15kgs / 16kgs
  24. Package Size: 44*43*34CM
