QS260 3000W V1 Electric Vehicle Hub Motor

Category: .

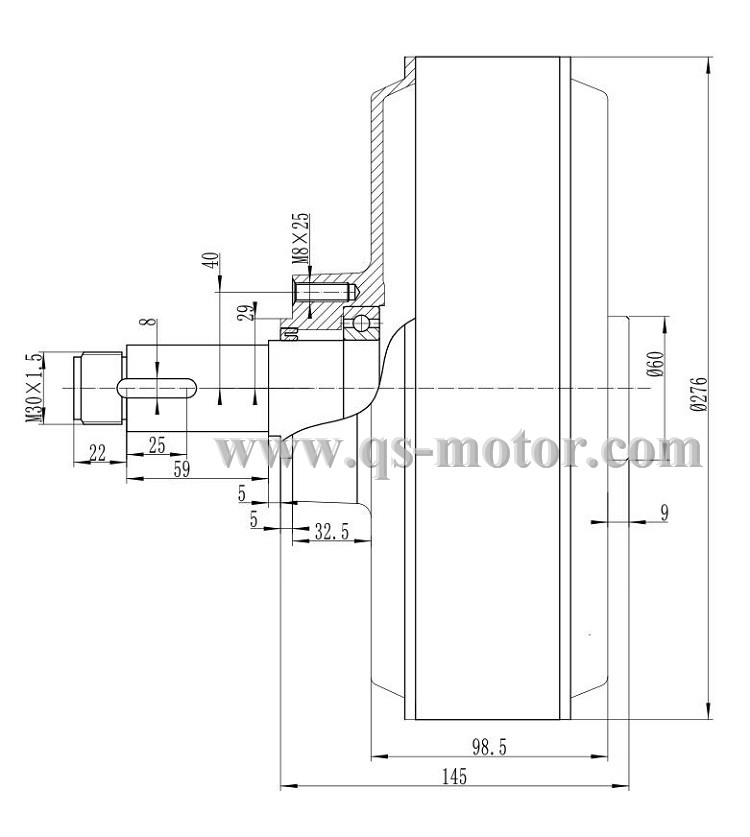

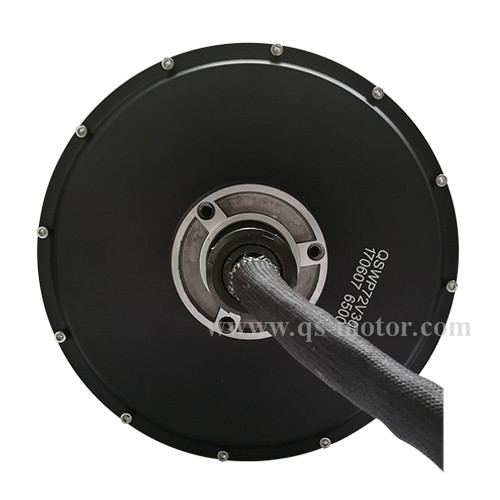

260 Single Shaft Electric Car Hub Motor(40H) 3000W V1 Type



260Model Electric Car Hub Motor is NEW developed for Electric Car or Electric Motorbike, the rated power can be made at 1500W,2000W,3000W or 5000W.

Version 1 and Version 3 can be optional



Motor Specification:



  1. Motor Type: BLDC Hub Motor with Permanent Magnets
  2. Motor design: 260 Single shaft out
  3. Bolts Pattern: 4 x 100MM or customs
  4. Magnet: 40H Straight Magnets
  5. Pole Pairs: 28 Pairs
  6. Rated Power: 3000W
  7. Peak Power:4000W
  8. Rated Voltage: 72V( 60V-96V Can be optional)
  9. Max No-load RPM: 1000RPM
  10. Max Torque: 150N.M
  11. Max Efficiency: 86%
  12. Brake type: Disc brake
  13. Winding Core material: Steel
  14. Cross Section of Phase wire: 10mm2
  15. Hall sensor phasing angle: 120 degree
  16. Temperature Sensor: Optional
  17. Working Temperature: 70 degree, Peak 120 degree
  18. Waterproof Grade: IP54
  19. W./ G..W. : 17kgs / 19kgs
  20. Package Size: 44*43*41CM
