260Model 5000W Single Shaft Electric Car Hub Motor 45H V3 Type

Category: .

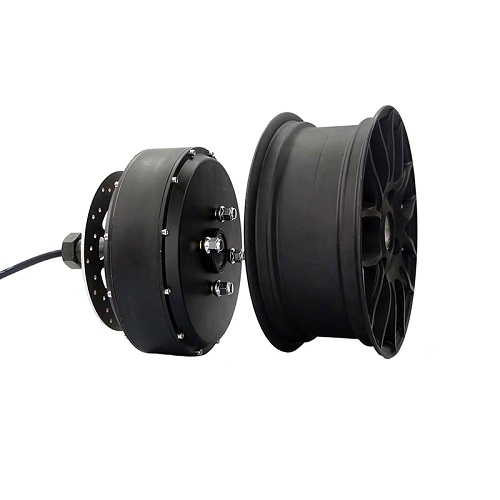

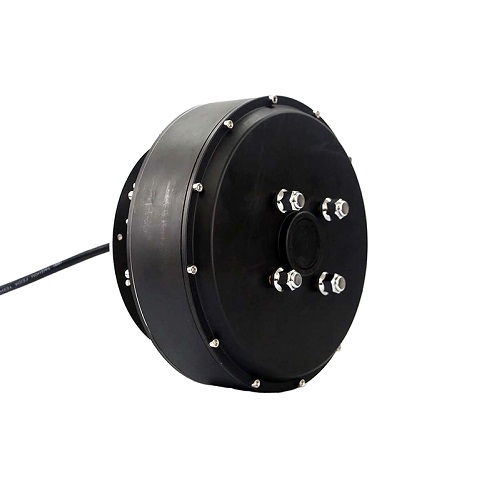

260 Single Shaft Electric Car Hub Motor(45H) 5000W V3 Type



260Model Electric Car Hub Motor is NEW developed for Electric Car or Electric Motorbike, the rated power can be made at 1500W,2000W,3000W or 5000W.

Version 1 and Version 3 can be optional!



Motor Specification:



  1. Motor Type: BLDC Hub Motor with Permanent Magnets
  2. Motor design: 260 Single shaft out
  3. Bolts Pattern: 4 x 100MM
  4. Magnet: 45H Curved Magnets with SH(340Degree) Lever
  5. Pole Pairs: 16 Pairs
  6. Rated Power: 5000W
  7. Peak Power: 10000W
  8. Rated Voltage: 72V( 60V-96V Can be optional)
  9. Max No-load RPM: 1320RPM
  10. Max Torque: 230N.M
  11. Max Efficiency: 90%
  12. Brake type: Disc brake
  13. Winding Core material: Aluimium
  14. Cross Section of Phase wire: 16mm2
  15. Hall sensor phasing angle: 120 degree
  16. Temperature Sensor: Optional
  17. Working Temperature: 70 degree, Peak 120 degree
  18. Waterproof Grade: IP54
  19. W./ G..W. : 18kgs / 20kgs
  20. Package Size: 44*43*41CM
