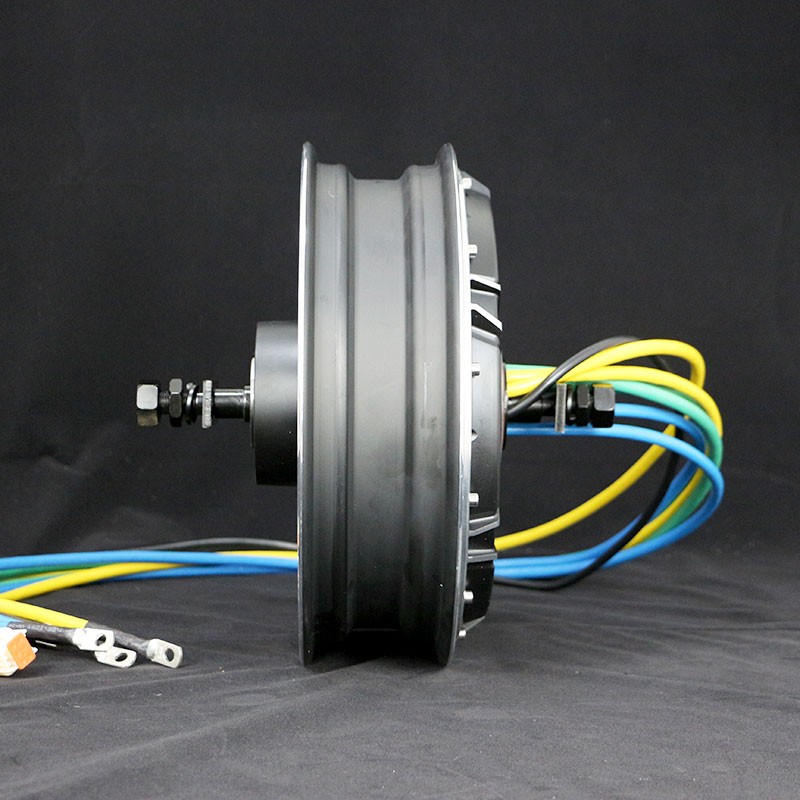

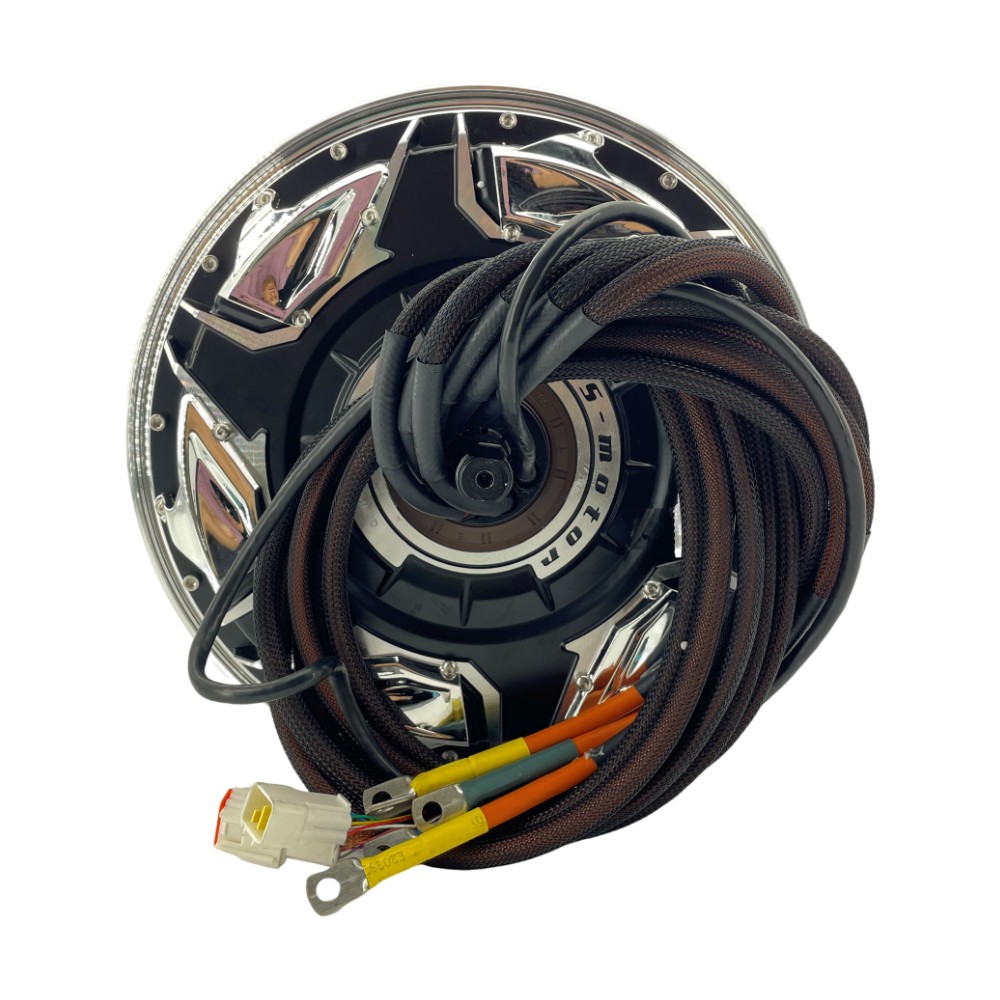

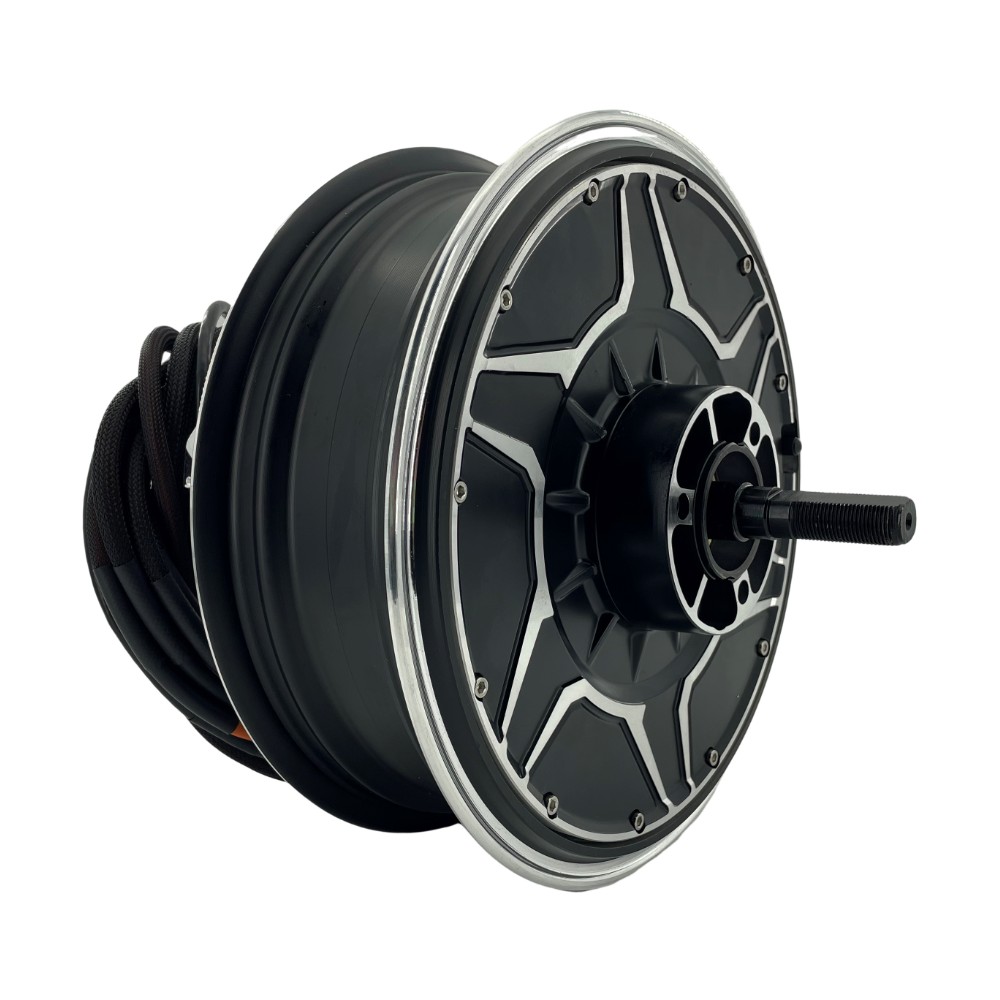

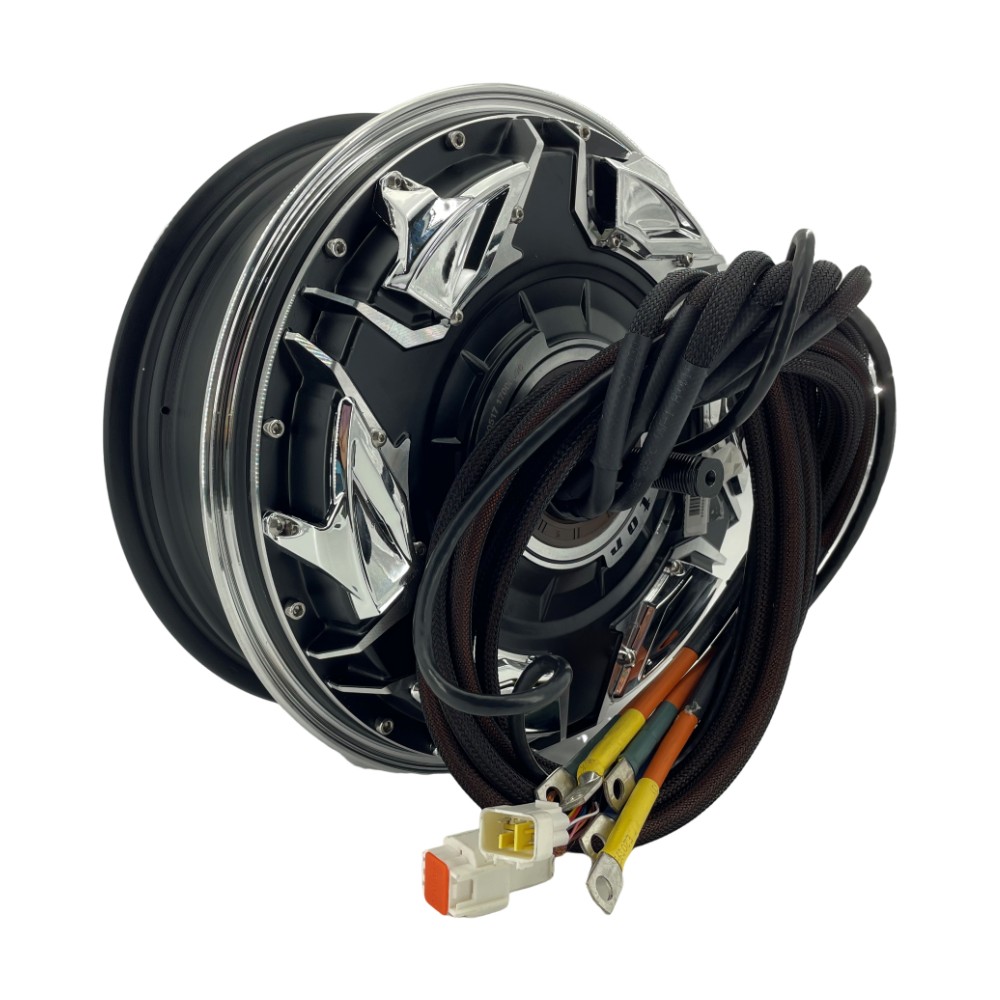

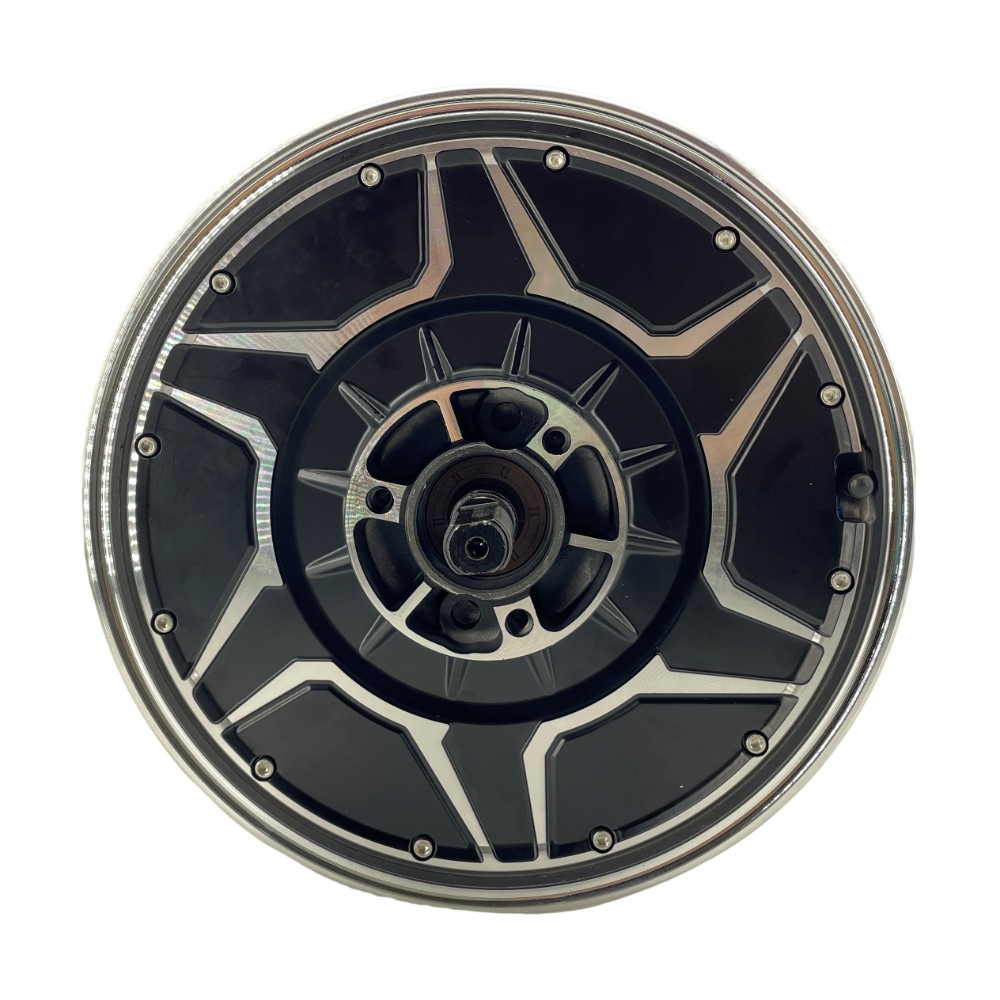

QS 268 12inch 25kw 90H V5 Hub Motor

12inch 268 E-Scooter In-Wheel Hub Motor 250000W V5 Type



Motor Specification:

  1. Motor Type: Brushless DC Hub Motor with Permanent Magnets and Hall sensors
  2. Motor design: Double axle out with 12inch Aluminium rim
  3. Rim size:3.0x12
  4. Matching Tire: 110/70-12
  5. Magnet Height: 90MM
  6. Pole Pairs: 16 pairs
  7. Rated Power: 250000W
  8. Rated Voltage: 72V( 72-144V Can be optional)
  9. Speed Options:130-170KPH
  10. Max No-load RPM:2000RPM
  11. Max Efficiency: 91%
  12. Continious current:300A
  13. Brake type: Disc brake
  14. Rear Fork width for installation: 230mm
  15. Hall sensor: Two group of Hall sensors(Model:SS413F)
  16. Winding Frame material: Aluimium
  17. Cross Section of Phase wire: 25mm2
  18. Temperature Sensor: KTY83-122
  19. Working Temperature: 70-120 degree, Peak 150 degree
  20. Waterproof Grade: IP66
  21. Working system: S9
  22. Cooling method: Natual
  23. W./ G..W. : 35kgs / 38kgs
  24. Package Size:43*43*40CM
