17inch electric motorcycle motor

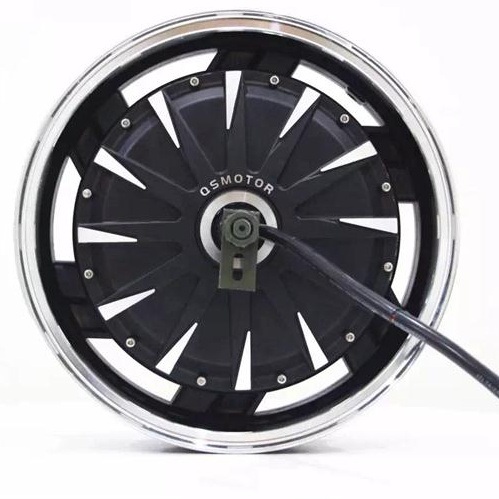

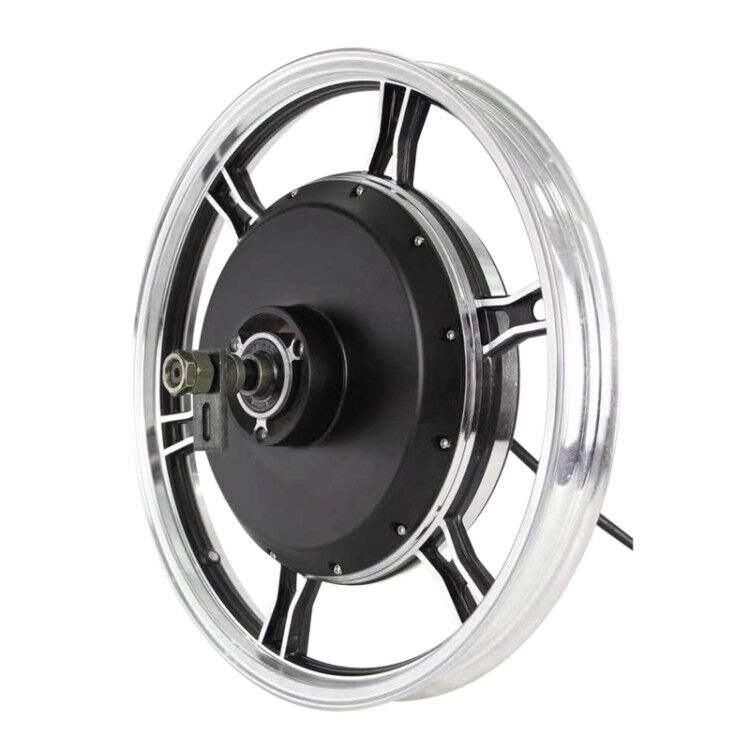

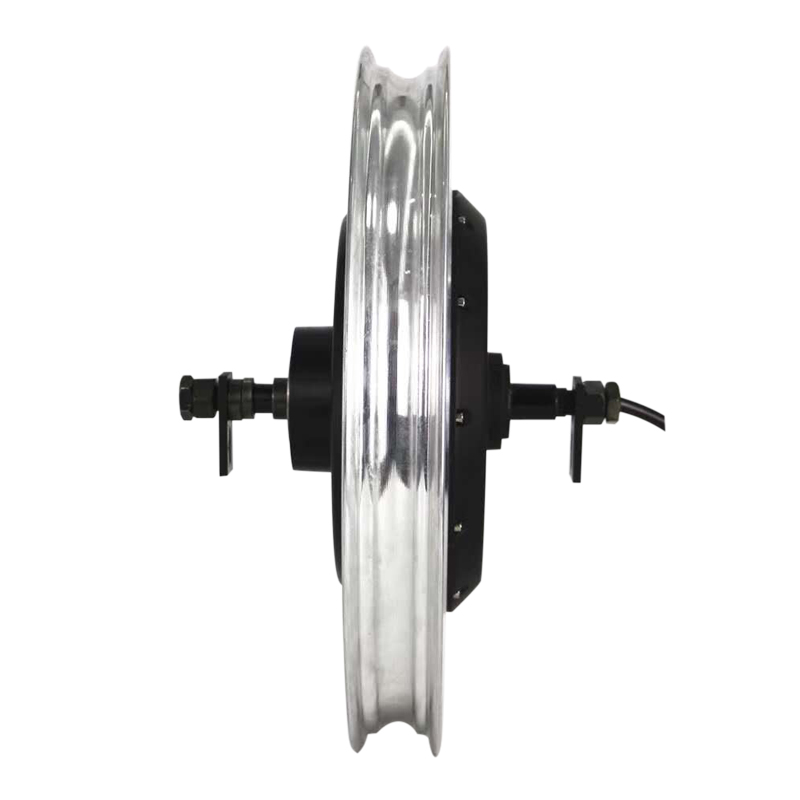

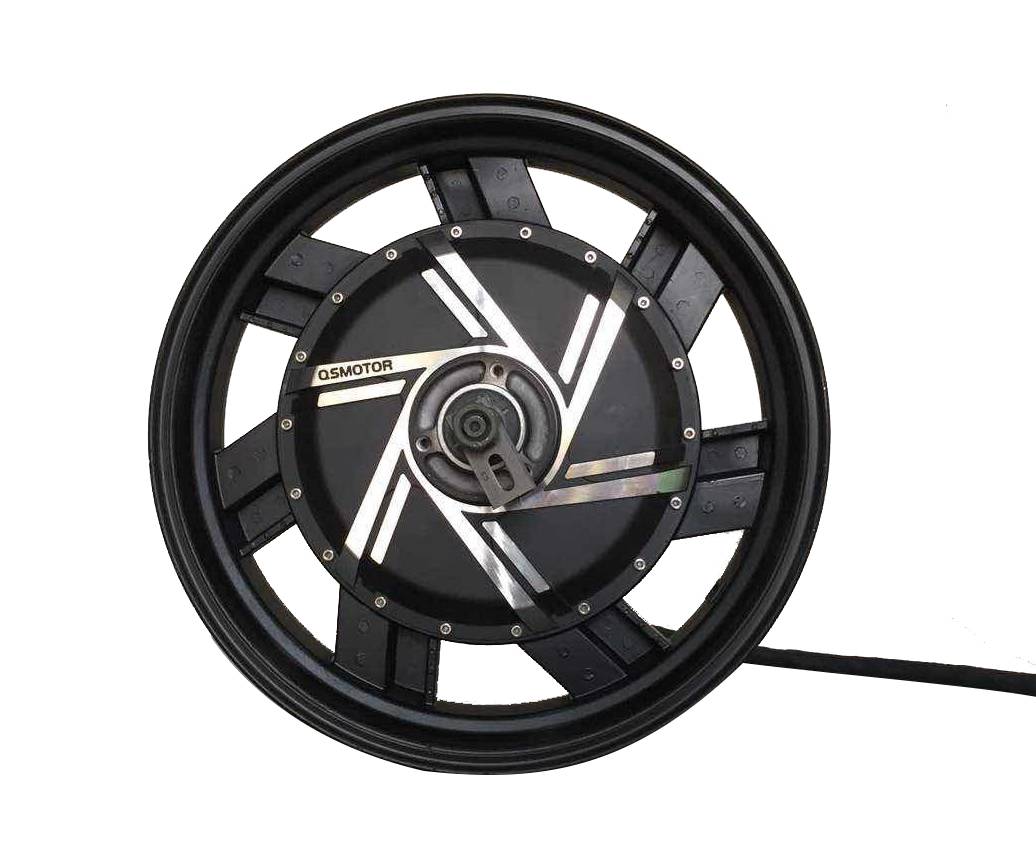

QS260 2000W 17inch E-Motorcycle Hub Motor

QS260 17inch E-Scooter Hub Motor(35H) 2000W V1 Type



Motor Specification:

Configuation:

  1. Motor Type: BLDC Hub Motor with Permanent Magnet
  2. Motor design: Double axle out with 10inch rim
  3. Rim size:1.85*17
  4. Brake type: Disc brake
  5. Matching Tire: 90/90-17
  6. Magnet Spec.: Length 35MM, Thickness 3.0MM
  7. Pole Pairs: 26 Pairs
  8. Lamination: 0.35mm high-grade
  9. Rear Fork width for installation: 200mm
  10. Winding Holder Material: Iron
  11. Bearing model:6205 / 6205
  12. Cross Section of Phase wire: 6 mm2
  13. Hall sensor: One group
  14. Temperature Sensor: Optional
  15. Color: Black or Silver
  16. W./ G..W. : 15kgs / 16kgs
  17. Package Size: 44*43*34CM





Specification:

  1. Rated Power: 2000W
  2. Rated Voltage: 48V/60V/72V
  3. Speed: 30-70km/h
  4. Max No-load RPM: 750RPM
  5. Max Torque: 160N.M
  6. Max Efficiency: 86%
  7. Continious current:40A
  8. Max current:55A
  9. Over-Voltage work: Supported
  10. Hall sensor phasing angle: 120 degree
  11. Working Temperature: 70 degree, Peak 120 degree
  12. Waterproof Grade: IP54
