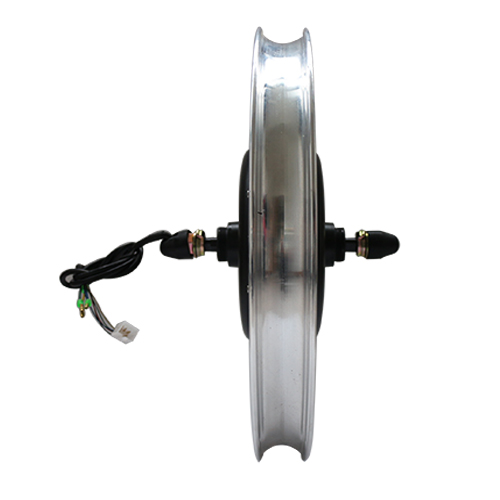

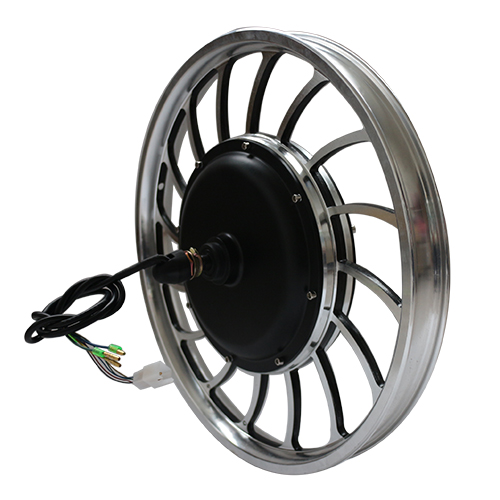

20” 500W Electric Bike Hub Motor

10inch 500W E-Scooter In-Wheel Hub Motor(25H)



10inch 500W Hub Motor specially designed for electric scooters or electric bike, drum brake or disc brake type can be optional, speed can be customized from 25-40KMPH.



Motor Specification:

1. Motor Type: BLDC Hub Motor with Permanent Magnets
2. Motor design: Double axle out with 10inch rim
3. Rim size:2.15×10
4. Matching Tire: 3.0-10, 3.5-10
5. Magnet Height: 25MM
6. No. of Pole Pairs: 23 pairs
7. Rated Power:500W
8. Max Power: 1050W
9. Rated Voltage: 48V
10. Speed: 35km/h (25-40km/h can be customized)
11. Max No-load RPM: 500RPM
12. Max Torque: 55N.M
13. Max Efficiency: 88%
14. Continious current:12A
15. Max current:35A
16. Brake type: Disc brake or Drum brake(Optional)
17. Rear Fork width for installation: 200mm
18. Winding Core material: IRON
19. Cross Section of Phase wire: 3 mm2
20. Hall sensor phasing angle: 120 degree
21. Max. Working Temperature: 70 degree, Peak 120 degree
22. Waterproof Grade: IP54
23. Color: Black or Silver
24. N.W./ G..W. : 10kgs / 11kgs
25. Package Size: 34*34*33CM
