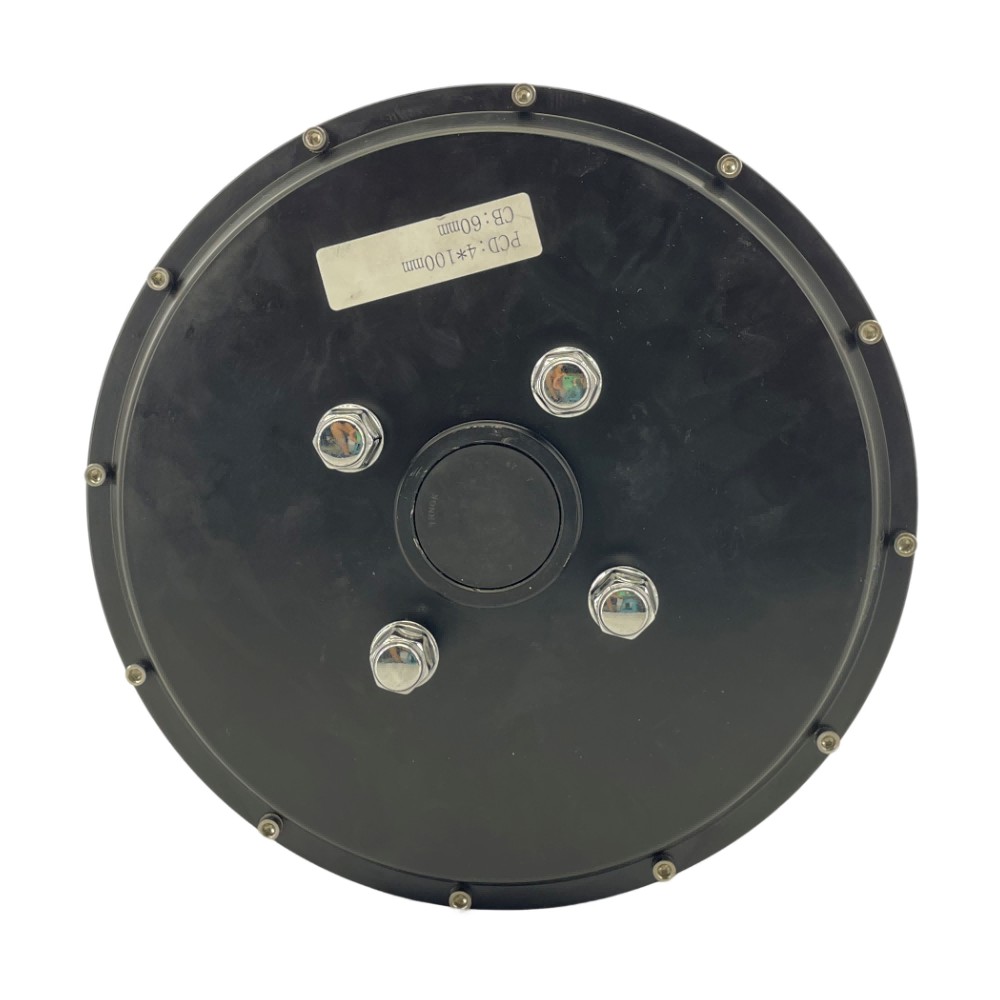

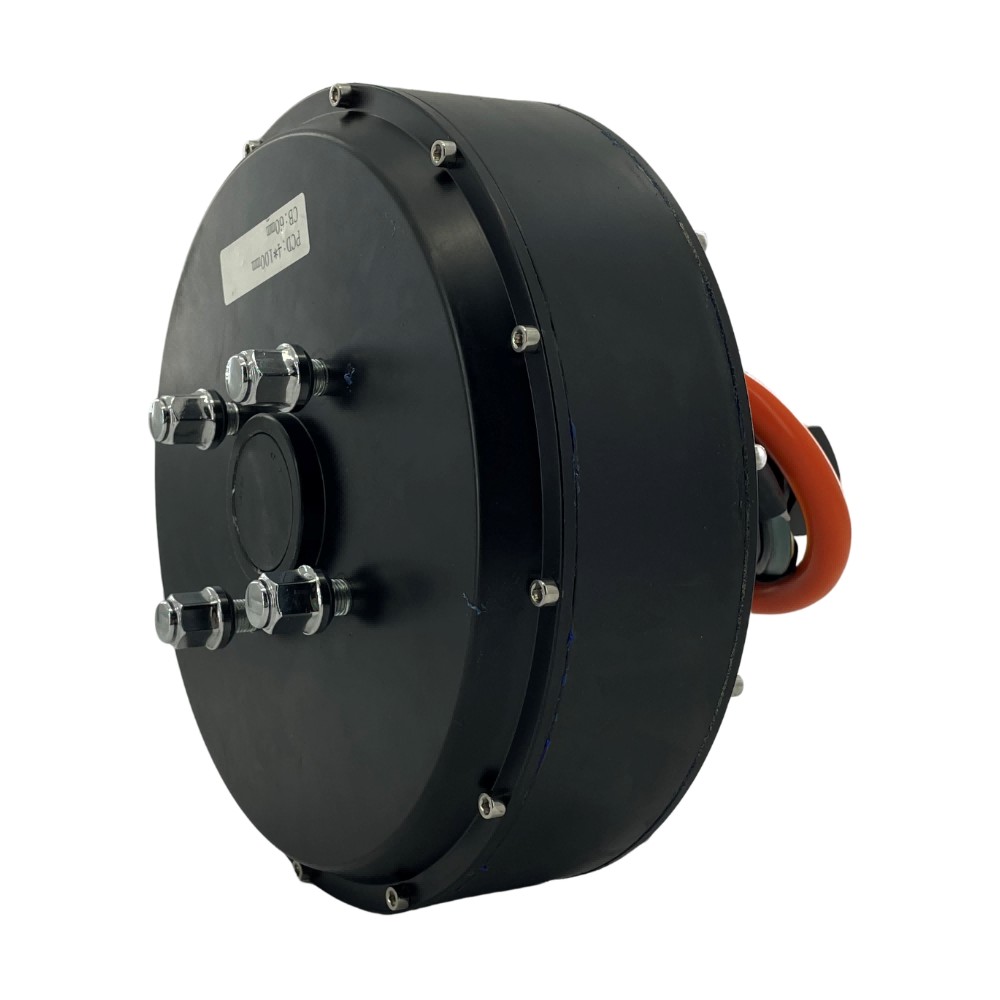

260Model 1500W Single Shaft Electric Car Hub Motor 28H V1 Type

Category: .

260 Single Shaft Electric Car Hub Motor(28H) 1500W V1 Type



260Model Electric Car Hub Motor is NEW developed for Electric Car or Electric Motorbike, the rated power can be made at 1500W,2000W,3000W or 5000W.

Version 1 and Version 3 can be optional



Motor Specification:



  1. Motor Type: BLDC Hub Motor with Permanent Magnets
  2. Motor design: 260 Single shaft out
  3. Magnet: 28H Straight mangets
  4. Pole Pairs: 23 Pairs
  5. Rated Power: 1500W
  6. Peak Power: 1950W
  7. Rated Voltage: 48V( 48V-72V Can be optional)
  8. Max No-load RPM: 600RPM
  9. Max Torque: 130N.M
  10. Max Efficiency: 87%
  11. Brake type: Disc brake
  12. Winding Core material: Steel
  13. Cross Section of Phase wire: 8mm2
  14. Hall sensor phasing angle: 120 degree
  15. Temperature Sensor: Optional
  16. Working Temperature: 70 degree, Peak 120 degree
  17. Waterproof Grade: IP54
  18. W./ G..W. : 18kgs / 20kgs
  19. Package Size: 44*43*41CM
