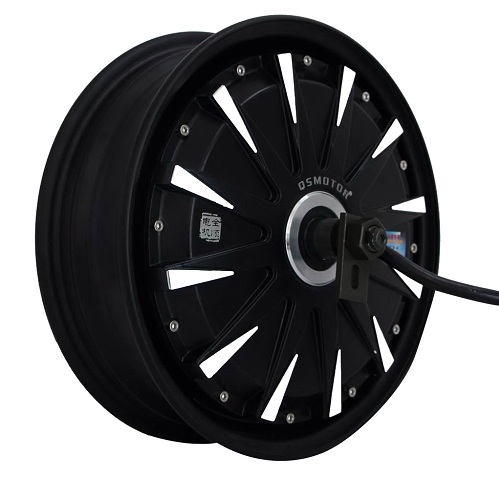

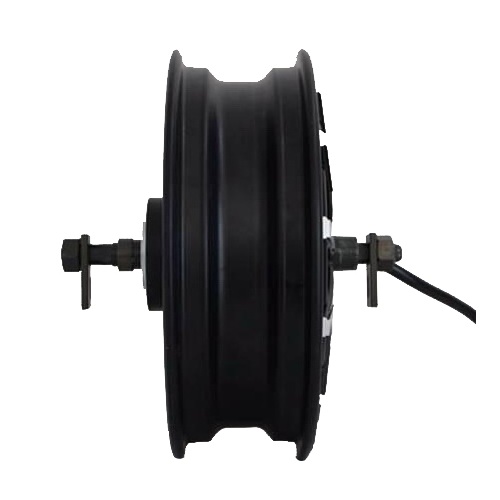

QS260 12inch 3000W wheel drive Hub Motor

QS260 12inch E-Scooter Hub Motor(40H) 3000W V1 Type

Motor Specification:

1. Motor Type: BLDC Hub Motor with Permanent Magnets
2. Motor design: Double axle out with 12inch rim
3. Rim size:3.5×12
4. Matching Tire: 120/70-12
5. Magnet Height and Thickness: 40MM/3MM
6. Lamination:0.35mm
7. Pole Pairs: 28 pairs
8. Rated Power: 3000W
9. Rated Voltage: 48V/60V/72V
10. Speed: 70km/h
11. Max No-load RPM: 850RPM
12. Max Torque: 130N.M
13. Max Efficiency: 86%
14. Brake type: Disc brake
15. Rear Fork width for installation: 200mm
16. Bearing model:6206/6205
17. Cross Section of Phase wire: 8mm2
18. Hall sensor phasing angle: 120 degree
19. Temperature Sensor: Optional
20. Max. Working Temperature: 70 degree, Peak 120 degree
21. Waterproof Grade: IP67
22. Color: Black
23. N.W./ G..W. : 17kgs / 18kgs
24. Package Size: 44*43*34CM
