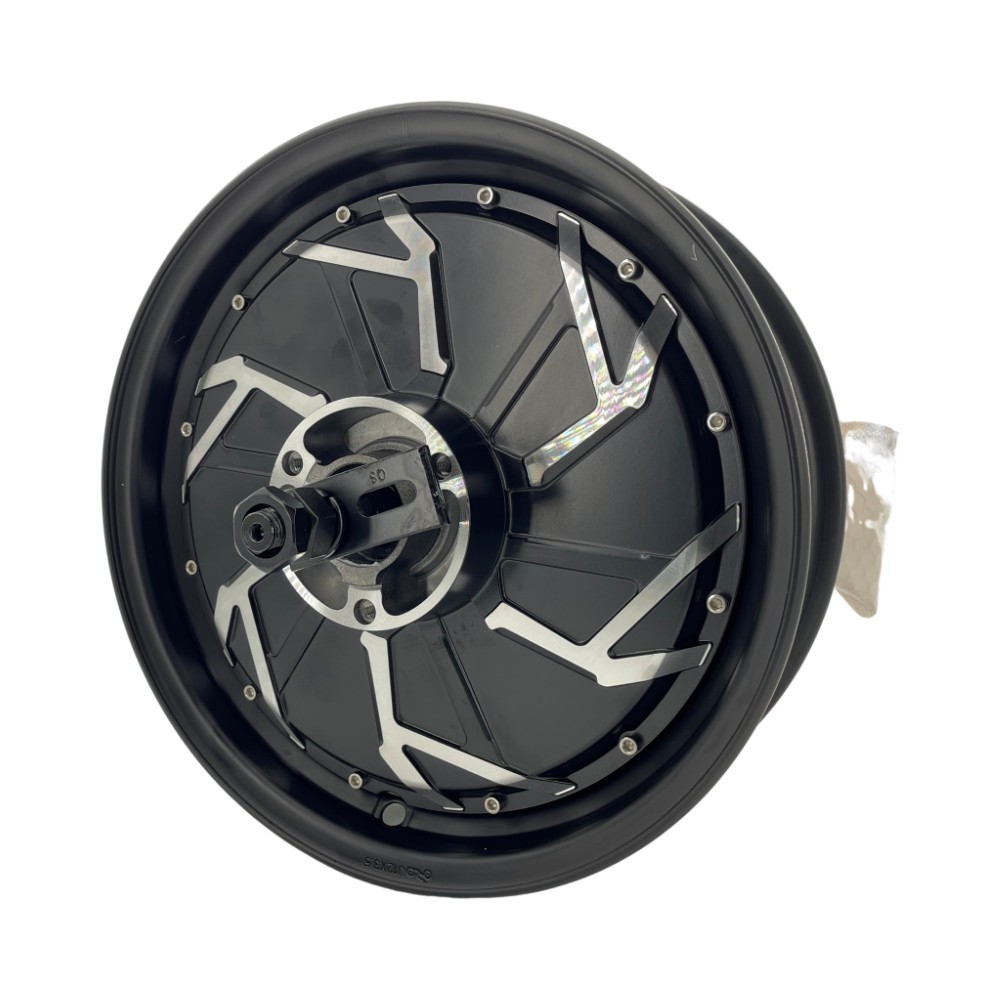

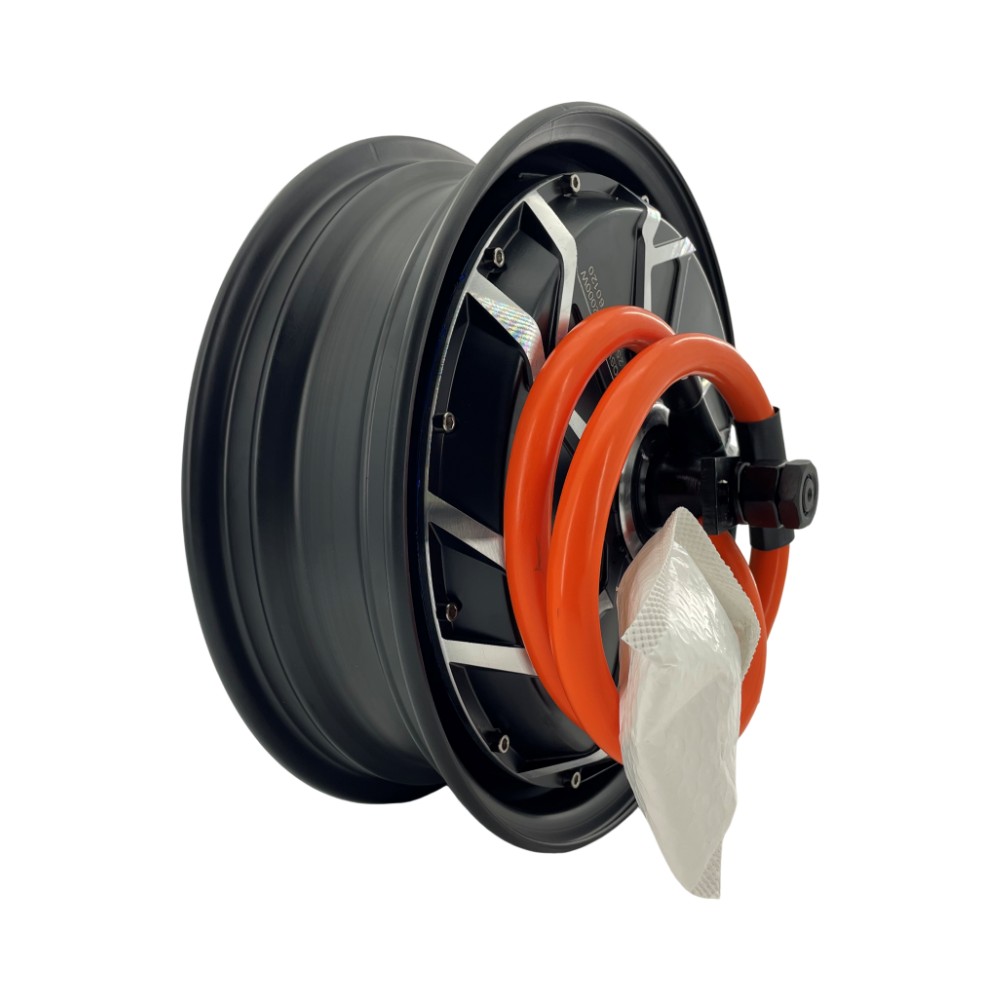

QS260 12INCH 6000W Hub Motor 50H V4 Type

This Hub motor  is the latest generation of the 12-inch high power hub motor from QS Motor.  It is an upgraded series of silicon steel. This motor is an export series product and is suitable for electric fans. This kind of version has better acceleration than V3 for same speed type,meanwhile the motor is more stable and the temperature is lower.



Spec:

QS Motor 6000W 260 50H E-Scooter Hub Motor
Motor Type: BLDC In-Wheel Hub Motor
Magnet Height: 50mm

Pole pairs: 16 pairs
Rated Power:6000W
Rated Voltage: 72V as default
Max. Speed: 100KPH
Max Torque: approx 300N.m
Max Efficiency: 86-91%
Peak Battery Current: 150A (72V)
Working Temperature: 70-120℃ , peak 150 ℃
Brake type: Disc brake, PCD3*80mm-M8, CB 58mm
Doubel Hall Set with waterproof connectors
16mm2 Cross Section of Phase Wire
Hall Sensor Phasing angle: 120 degree
Waterproof Grade: IP54
Color: Black or Colorful
