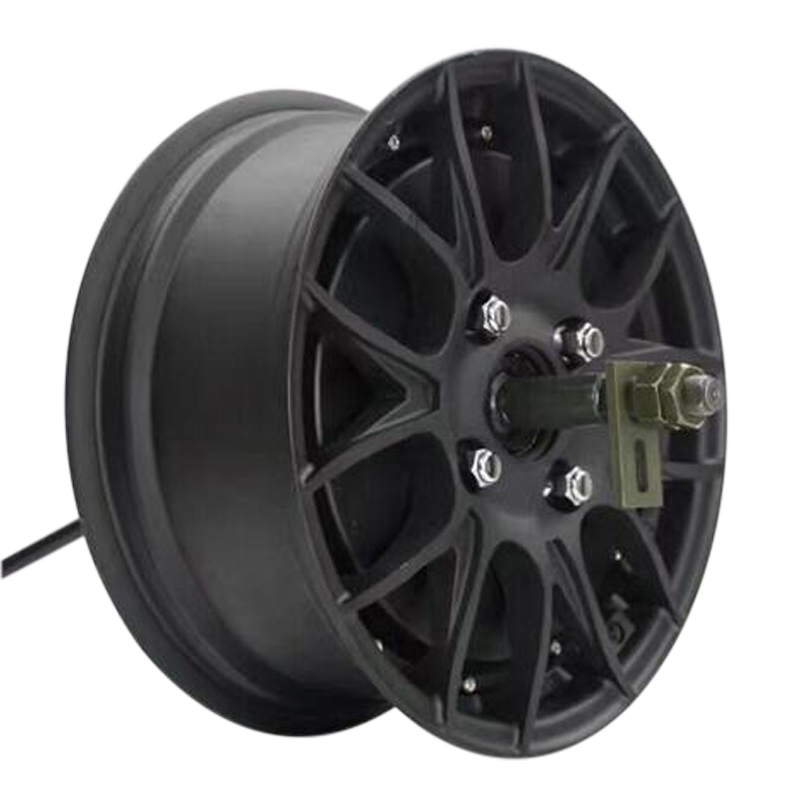

QS260 3000W V4 5.0x12inch Wheel Hub Motor

QS260 3000W E-Scooter Hub Motor V4 Type with 5.0×12 Removable rim

12inch 260 Hub Motor specially designed for electric motorcycle or electric scooters, the rated power can be made at 1500W,2000W,3000W or 5000W. Max speed can be customs at 35-100km/h.



Motor Specification:

  1. Motor Type: BLDC Hub Motor with Permanent Manget
  2. Motor design: Double axle out with 10inch rim
  3. Rim size:5.0×12 (Removable)
  4. Matached Tire: 165/55-12
  5. Magnet Height: 40MM
  6. of Pole Pairs: 16 paris
  7. Rated Power: 3000W
  8. Max Power: 6700W
  9. Rated Voltage: 72V( 60V-96V Can be optional)
  10. Speed: 80km/h (30-100km/h can be customized)
  11. Max No-load RPM: 1280RPM
  12. Max Torque: 190N.M
  13. Max Efficiency: 90%
  14. Continious current:46A at 72V
  15. Max current:100A at 72V
  16. Brake type: Disc brake
  17. Rear Fock width for installation: 230mm
  18. Winding Frame material: Aluimium
  19. Cross Section of Phase wire: 16mm2
  20. Hall sensor phasing angle: 120 degree
  21. Temperature Sensor: Optional
  22. Working Temperature: 70 degree, Peak 120 degree
  23. Waterproof Grade: IP66
  24. Color: Black
  25. W./ G..W. : 18kgs / 19kgs
  26. Package Size: 44*43*34CM
