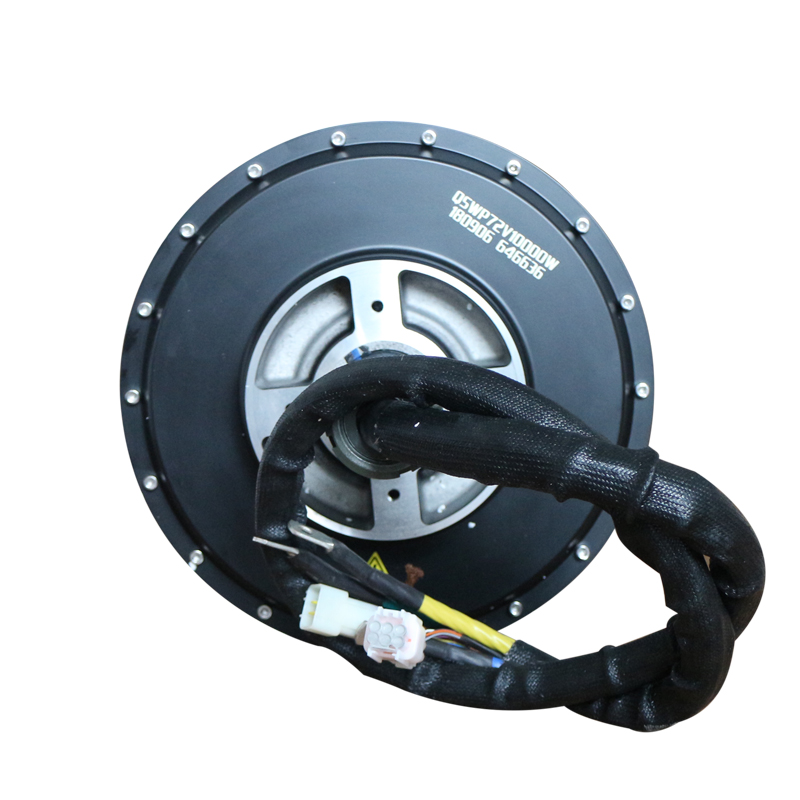

QSMOTOR 273 12KW E-CAR Hub Motor

Category: .

QSMOTOR 273 12KW E-CAR Hub Motor

  • Motor Design: BLDC In-Wheel Hub Motor
  • Matched Wheel:  ≥14inch Car Wheel, (PCD4*100mm, CB60mm as default)
  • Magnet Height: 70mm, 16 pole pairs
  • Rated Power: 12000W (24kW peak in few seconds)
  • Rated Voltage: 96V
  • Max. Speed: 100-120kph
  • No-Load RPM: 1000RPM(Can be customized)
  • Max Torque: more than 350N.m
  • Max Efficiency: 86-91%
  • Peak Battery Current: 250A (96V)
  • Suggest Peak Phase Current: 530-700A
  • Thermic Probe: KTY83/122
  • Brake type: Disc brake, PCD4x114.3mm-M12, CB 67mm(as default)
  • Dual Hall Set with waterproof connectors
  • Cross section of the phase cable: 25mm2
  • Hall Sensor Phasing angle: 120 degree
  • Waterproof Grade: IP66
  • N.W./G.W.: 32kg/34
