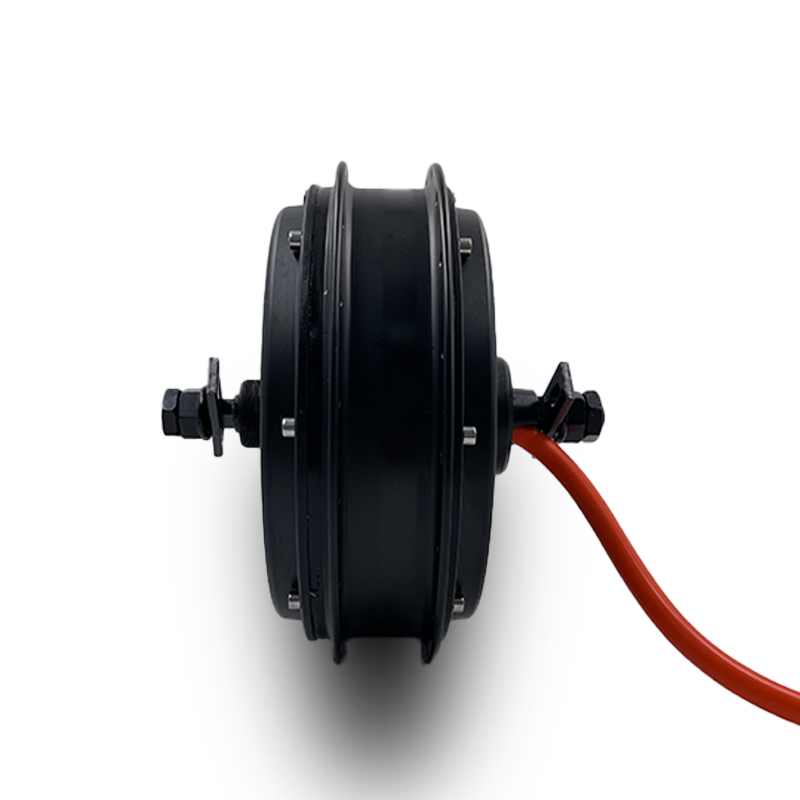

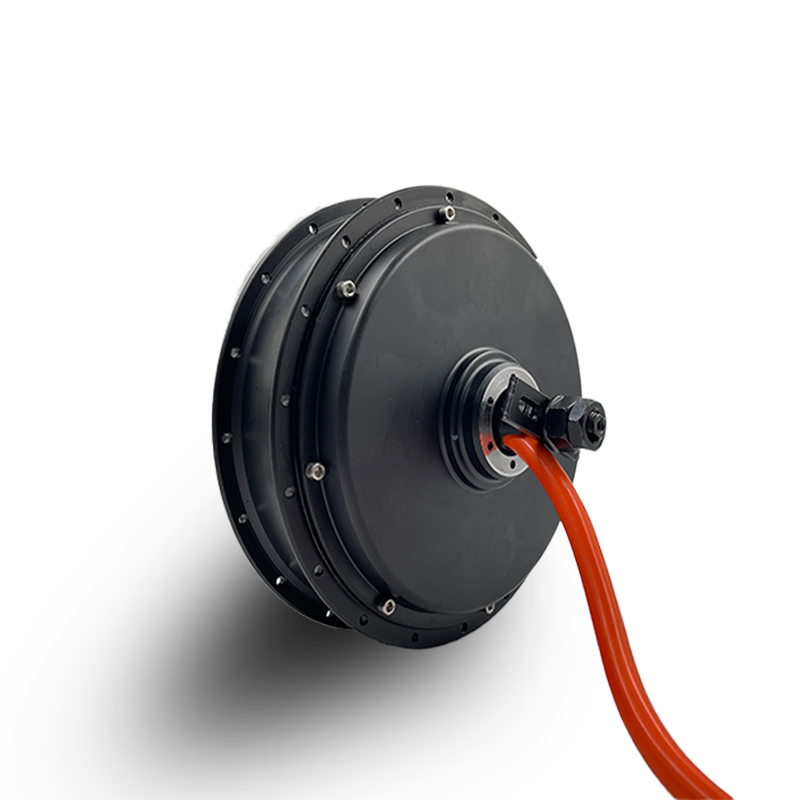

6000W Electric Bicycle Spoke Hub Motor V3 Type (50H) drop-out 150mm

The E-bike spoke hub motor specially designed for high power electric bike or bicycle, rated power can be customized 2000Wor 3000W, Max power can reach 6000W!!!

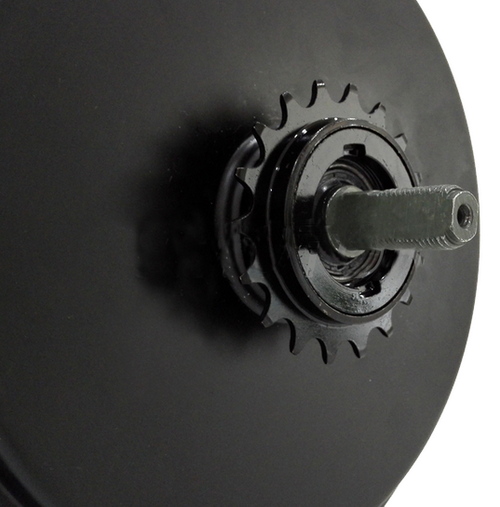

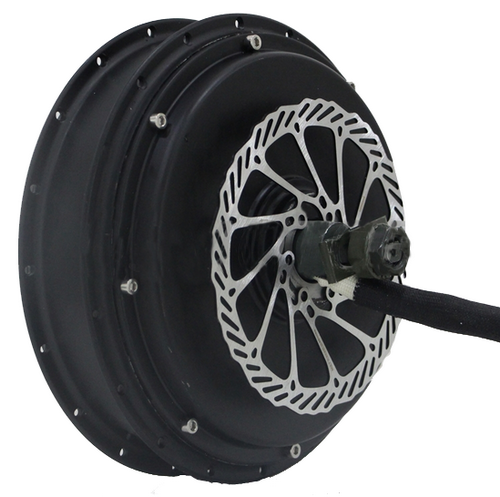

Max speed 45-90km/h,and the motor installation width for the rear fork is 150mm,and can be attached the E-bike Sprocket and Brake disc!





NEW 205 Spoke Hub Motor(50H) 3000W V3 For Electric Bicycle



Motor Specification:

  1. Motor Type: BLDC Hub Motor with Permanent Magnet
  2. Motor design: Double axle out
  3. Spoke hole: 3.4mm x 36pcs
  4. Matching Rim:16inch-26inch
  5. Magnet Height: 50MM
  6. of Pole Pairs: 16 pairs
  7. Rated Power: 3000W
  8. Max. Power: 6000W
  9. Rated Voltage: 72V( 48-96V Can be optional)
  10. Speed: 70km/h (30-90km/h can be customized with 24inch wheel)
  11. Max No-load RPM: 900RPM
  12. Max Torque: 150N.M
  13. Max Efficiency: 88%
  14. Continious current:45A
  15. Max current:80A (Peak 100A in short time)
  16. Brake type: Disc brake
  17. Rear Fork width for installation: 150mm
  18. Winding Core material: Aluminium
  19. Cross Section of Phase wire: 10 mm2
  20. Hall sensor phasing angle: 120 degree
  21. Temperature Sensor: Optional
  22. Working Temperature: 70 degree, Peak 120 degree
  23. Waterproof Grade: IP54
  24. Color: Black
  25. W./ G..W. : 14kgs / 15kgs
  26. Package Size: 34*34*33CM

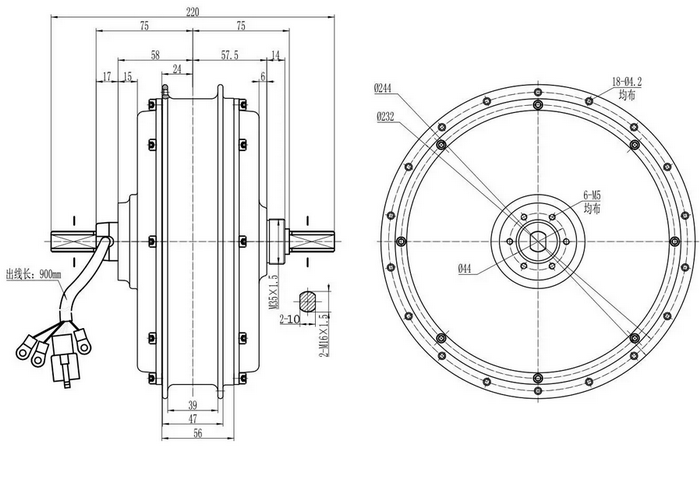

The Motor drawing as follows,

照片 001

%e7%85%a7%e7%89%87-006



%e7%85%a7%e7%89%87-005
