i1000W e-bike motor

1500W Electric Bike Kits Rear Drive Spoke hub Motor drop-out 135mm

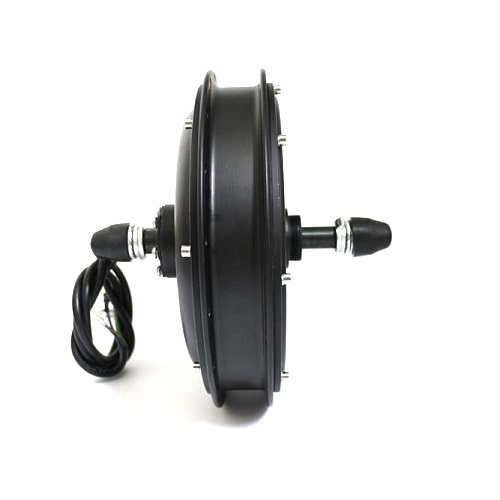

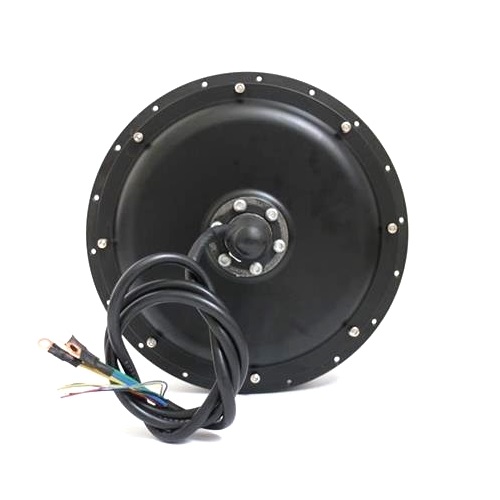

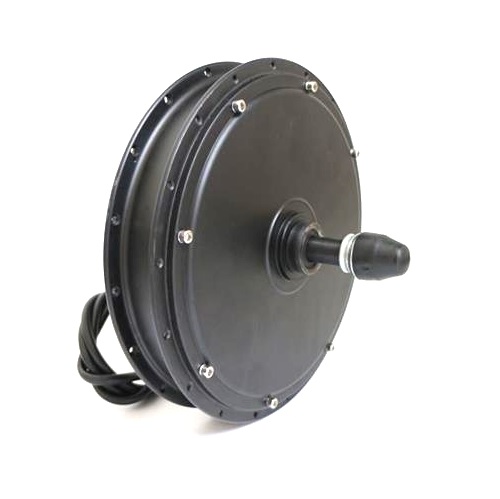

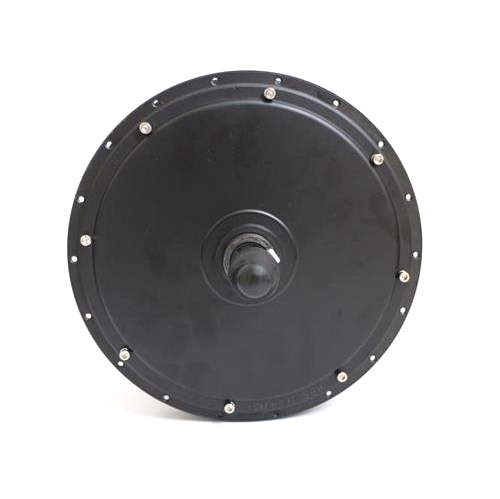

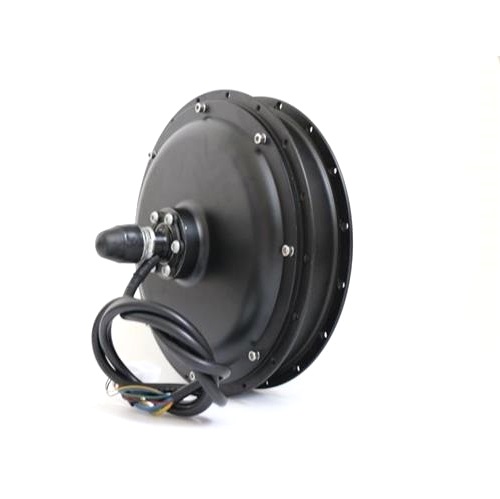

1500W Spoke Hub Motor For Electric Bicycle



This Spoke Hub Motor specially designed for normal Electric bicycle conversion.



Motor Specification:

  1. Motor Type: BLDC Hub Motor with Permanent Magnet
  2. Motor design: Double axle out
  3. Spoke hole: 3.4mm x 36pcs
  4. Magnet: 35H
  5. Matching Rim:16inch-26inch
  6. Rated Power:1500W
  7. Peak Power:1800W
  8. Rated Voltage: 48V/60V(Can be optional)
  9. Speed: 50km/h
  10. Max No-load RPM:700RPM
  11. Max Torque:100N.M
  12. Max Efficiency: 88%
  13. Continious current:36A
  14. Max current:50A
  15. Brake type: Disc brake
  16. Rear Fork width for installation: 135mm
  17. Winding Core material: Steel
  18. Cross Section of Phase wire: 6 mm2
  19. Hall sensor phasing angle: 120 degree
  20. Working Temperature: 70 degree, Peak 120 degree
  21. Waterproof Grade: IP54
  22. W./ G..W. :10kgs / 11kgs
  23. Package Size: 27*23*29CM
