New electroplating cover 10inch 1000W-4000W Hub Motor for electric scooter

The 10inch Electric Hub Motor specially designed for electric scooters, rated power can be customized 1000W,1500W,2000W,3000W or 4000W, max speed 25-100km/h

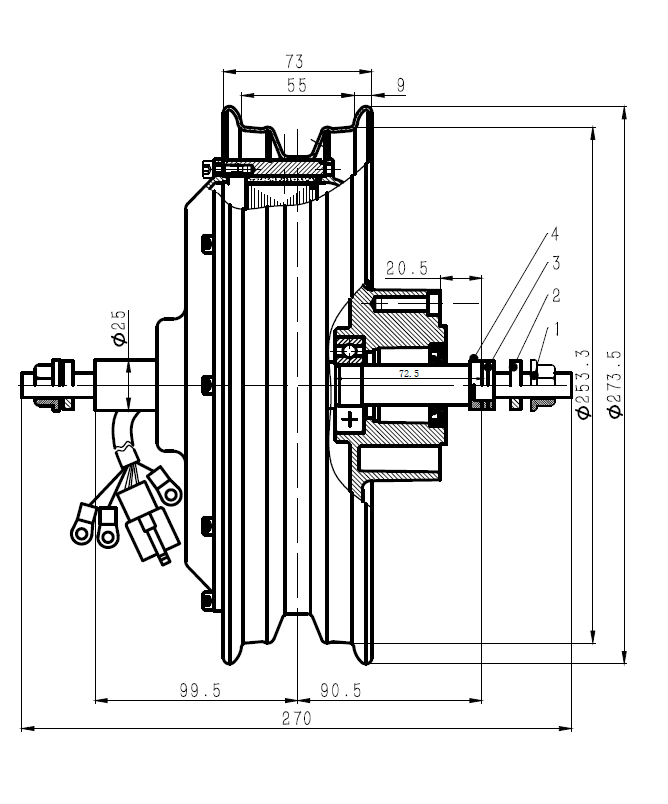

Motor Specification

1. Motor Type: Brushless DC Hub Motor with Hall Sensor
2. Motor design: Double axle out with 10inch rim
3. Rim size:2.15-10
4. Matached Tire: 3.0-10, 3.5-10
5. Magnet Height: 30mm
6. Rated Power: 1000W,1500W,2000W,2500W,3000W or 4000W (Can be optional)
7. Rated Voltage: 48V,60V,72V,84V,96V(Can be optional)
8. Speed: 25-100km/h(Can be customized)
9. No-load RPM: 400-1500RPM(Can be customized)
10. Max Torque: 80-150N.M
11. Max Efficiency: 88%
12. Brake type: Disc brake or Brum brake(Optional)
13. Drop-outs: 200mm
14. Waterproof Grade: IP54
15. Color: Black or Yellow white
16. N.W./ G..W. : 13kgs / 14kgs
17. Package Size: 34*34*33CM
