QS205 2000W Spoke Hub Motor 45H V3 Type For Electric motorcycle

QS205 Spoke Hub Motor(45H) 2000W V3 Type



The 205 Spoke Hub Motor specially designed for Electric bicycle or Electric motorcycle, drum brake or disc brake type can be optional



Motor Specification:



  1. Motor Type: BLDC Hub Motor with Permanent Magnet
  2. Motor design: Double axle out
  3. Spoke hole: 3.4mm x 36pcs
  4. Matching Rim:16inch-26inch
  5. Magnet Height: 45MM
  6. Pole Pairs: 16 pairs
  7. Rated Power: 2000W
  8. Peak Power: 4000W
  9. Rated Voltage: 72V( 48-96V Can be optional)
  10. Different RPM option: Kv12.8, Kv13.8,Kv17.3
  11. Max Torque: 160N.M
  12. Max Efficiency: 90%
  13. Continious current:30A
  14. Max current:80A (Peak 100A in short time)
  15. Brake type: Disc brake or Drum brake(Optional)

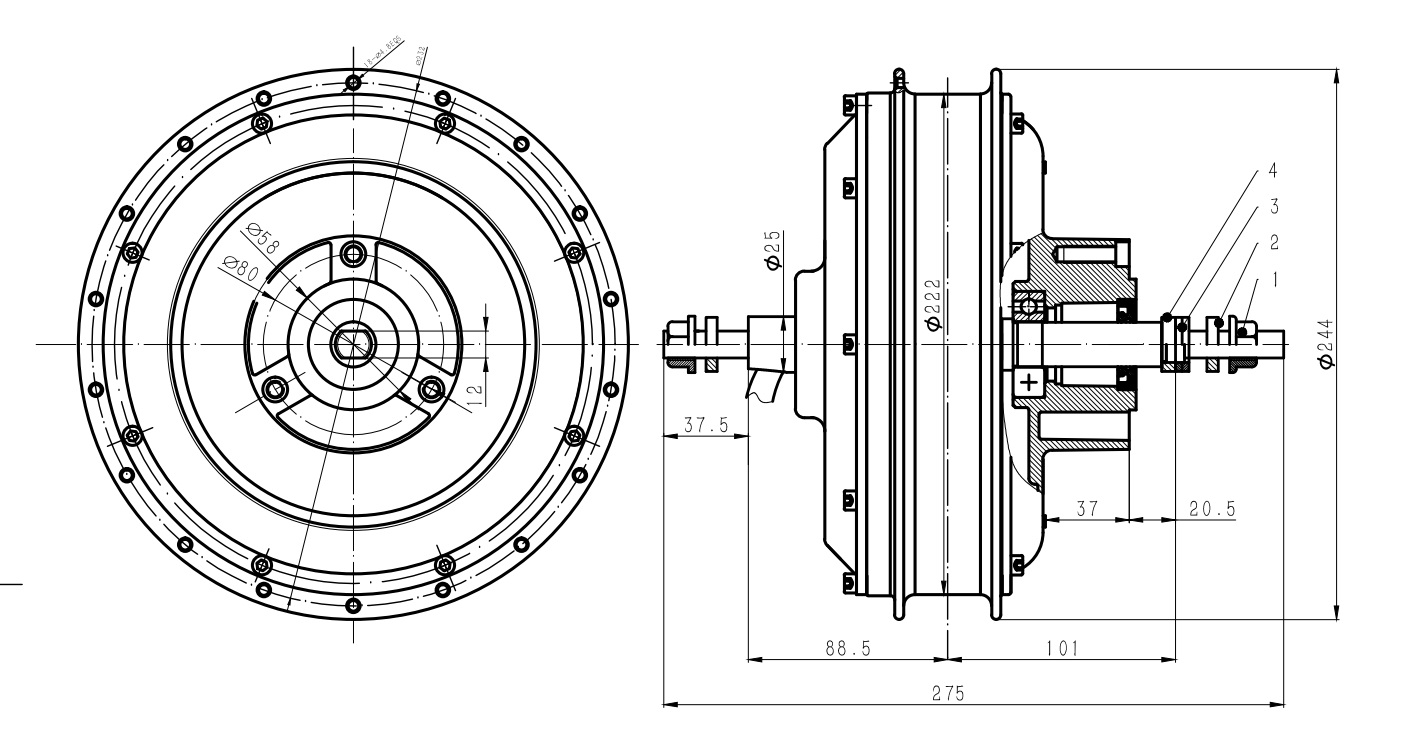

  16. Rear Fork width for installation: 200mm
  17. Winding Holder material: Aluminium
  18. Cross Section of Phase wire: 10 mm2
  19. Hall sensor phasing angle: 120 degree
  20. Temperature Sensor: Optional
  21. Working Temperature: 70 degree, Peak 120 degree
  22. Waterproof Grade: IP54
  23. Color: Black or Silver
  24. W./ G..W. : 11kgs / 12kgs
  25. Package Size: 34*34*33CM
