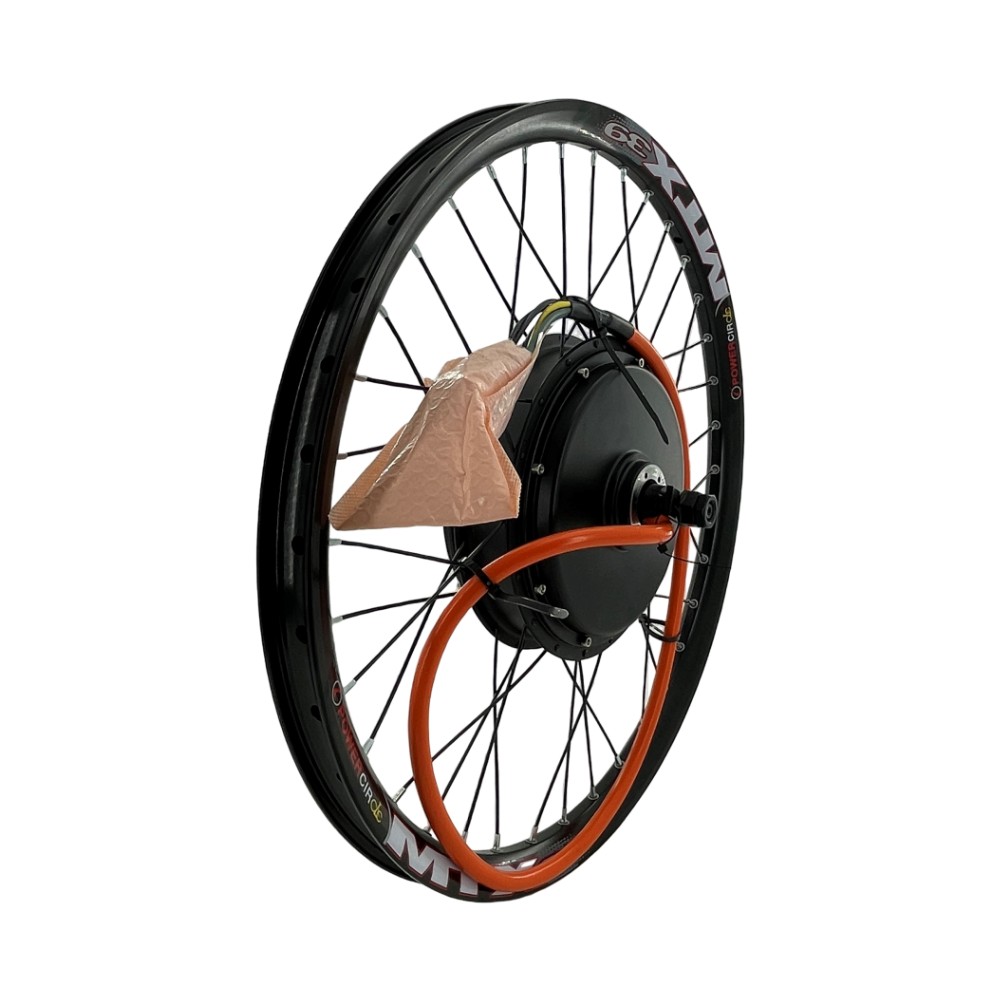

QS205 3000W Motor with Laced 24” 26” Bicycle rim

• 1. Motor Type: BLDC Hub Motor with Permanent Magnet
• 2. Motor design: Double axle out
• 3. Spoke hole: 3.4mm x 36pcs
• 4. Matching Rim:24” 26” MTX Wheel
• 5. Magnet Height: 50MM
• 6. Pole Pairs: 16 Pairs
• 7. Rated Power: 3000W
• 9. Rated Voltage: 48V
• 10. Max Torque: 180N.M
• 11. Max Efficiency: 88%
• 12. Continious current:45A
• 13. Max current:80A (Peak 100A in short time)
• 14. Brake type: Disc brake
• 15. Rear Fork width for installation: 177mm
• 16. Winding Frame material: Aluminium
• 17. Cross Section of Phase wire: 10 mm2
• 18. Hall sensor phasing angle: 120 degree
• 19. Temperature Sensor: KTY83-122
• 20. Max. Working Temperature:90 degree, Peak 150 degree
• 21. Waterproof Grade: IP67
• 23. N.W./ G..W. : 14kgs / 15kgs
• 24. Package Size: 34*34*33CM

Motor drawing as follows,
