QSMOTOR 1000W BLDC Mid-drive Motor Assembly Conversion Kits For Electric Scooter

QS90 Model 1000W BLDC Mid-drive Motor assembly suits electric scooters with 10inch wheel, the design max. speed about 45-55kmph, torque 120-135N.M

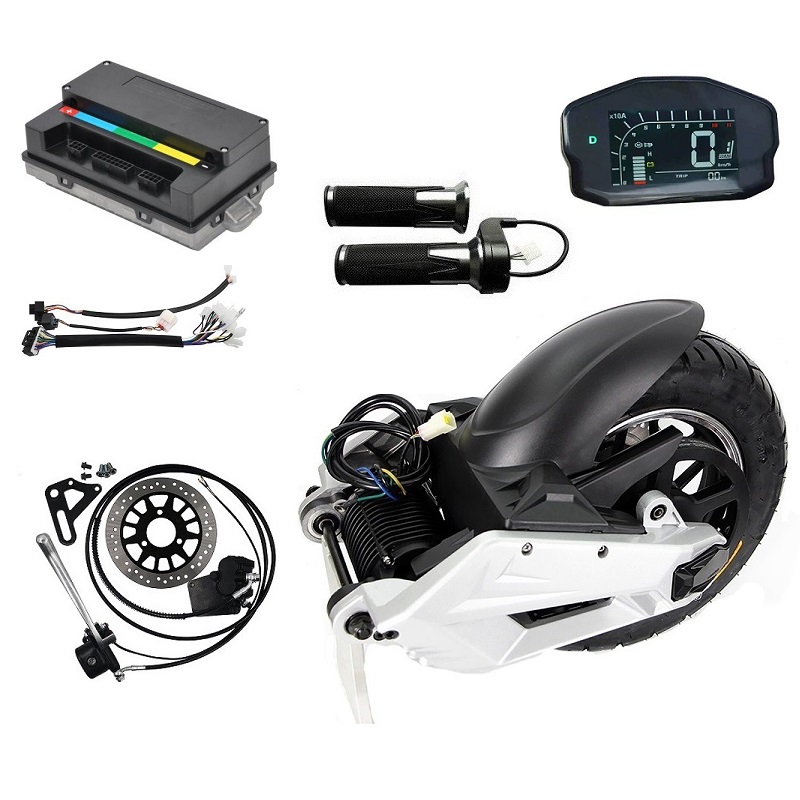

The parts list as follows(The tire is not included),

    • 1000W BLDC Assembly Motor kits
    • Matching Controller Votal EM-50s(Optional)

Motor Specification:

1. Model Number:QS90 80H Mid-drive BLDC Motor

2.Rated voltage:60V/72V

3. Rated power:1000W

4. Rated current: 10-20A

5. Max Efficiency:90-94%

6. Rated Torque:10-18N.M

7. Max. torque:22-30N.M (130N.M after 1:4.63 Ratio)

8. Motor Phase angle: 120 degree

9. Motor Phase Shift: 60

10.Pole pairs: 5

11. Over-load working in short time: 1.6 times on rated torque works in 5 mins

12. Sensor type: Hall sensor

13. Winding working tem.: Not high than 150 degree

14. Motor phase cable: 3 x 4mm2 cable

15. Magnet grade: 35H (Working tem. under 150 degree)

16. Matching Controller current(Battery supply to controller): 35A

17. Cooling method: Air cooling

18. Phase cable connector: 43-5C

19. Hall wire connector: DJ7062-2.3-11 DJ611-2.3

20. Insulation Grade: Grade F

21. Water proof grade: IP67



Dimensions with Assembly:

O1CN01AbtERj2N82GcoMilR_!!191689917O1CN01z6PMV02N82GecfyPm_!!191689917

Test report:

微信截图_20200216150213微信截图_20200216150244微信截图_20200216150306

Sample scooter

微信图片_20200216152149微信图片_20200216152156微信图片_20200216152144
